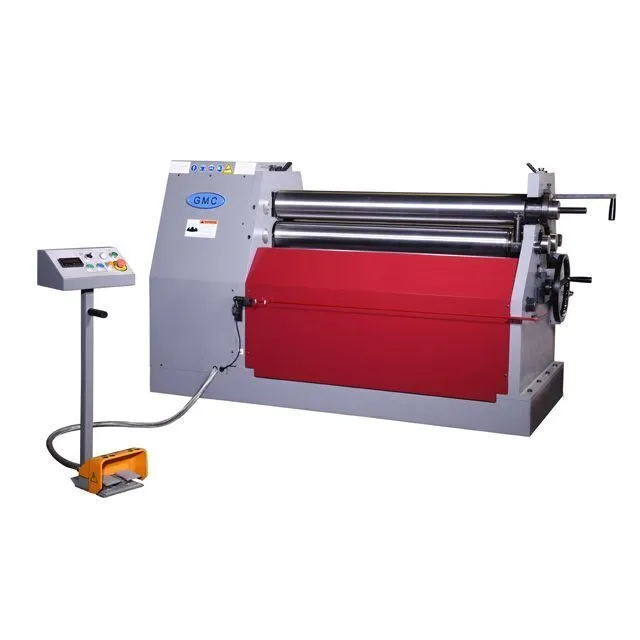

NEW GMC MACHINE TOOLS HBR-0808

Florida, United States
Asking Price
USD $39,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

GMC HBR-0808 Initial Pinch Hydraulic Plate Bending Roll has a mild steel roll capacity of 8 feet x 1/4 inches. Power source is 208V/220V.This machine is made in Taiwan.Standard cone attachment installed.Heavy Duty all steel welded machine construction.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
96"
2.4 m
Max Thickness
0.1644"
4.1758 mm
Pre-Bending Thickness
0.12"
3.048 mm
Capacity - Mild Steel
8 gauge
8 gauge
Capacity - Stainless Steel
12 gauge
12 gauge
Capacity - Soft Aluminum
0.25"
6.35 mm
# Rolls
3
3
Roll Diameter
6.5"
165.1 mm
Min. Roll Diameter
7.5"
190.5 mm
Roll Speed
5 RPM
5 RPM
Rolls Opening
2.03"
51.562 mm
Oil Tank Capacity
12 gal
45.4 L
Power
7.5 hp
5.6 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Amperage
25A (220V) or 15A (440V)
25A (220V) or 15A (440V)
Dimensions
142 x 38 x 58 in.
142 x 38 x 58 in.
Weight
8,150 lbs.
8,150 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
