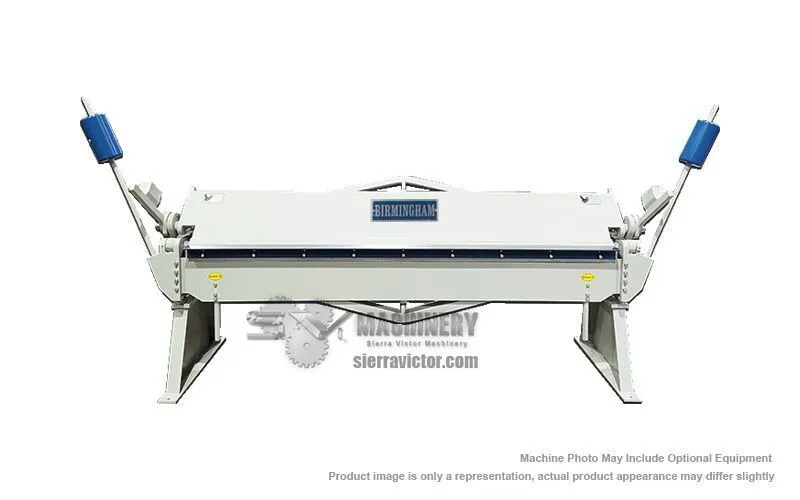

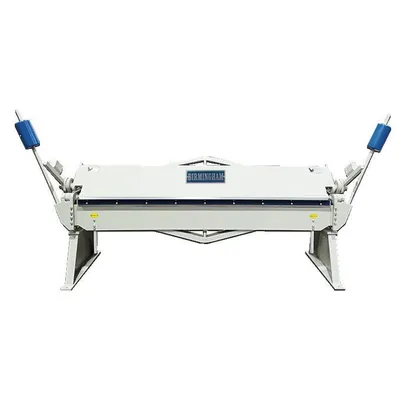

Floor type model has a bending angle adjustable mechanism, and angle range from 0-135 degrees. This machine was made in Taiwan.
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
| Capacity (ga) Stainless | 16 gauge | 16 gauge |
| Bending Length | 97" | 2,463.8 mm |
| Bending Angle | 0-135° | 0-135° |
| Beam Adjustment | 1" | 25.4 mm |
| Min Reverse Bend | 0.3125" | 7.9375 mm |
| Shipping Weight | 3,000 lb | 1,360.8 kg |
| Dimensions | 123 x 34 x 40 in. | 123 x 34 x 40 in. |
| Weight | 3000 lbs. | 3000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for Price:
24" manual back gauge with slide and lock for all manual brakes
32" single axis, NC programmable power brake gauge with Germany ELGO# P8511
