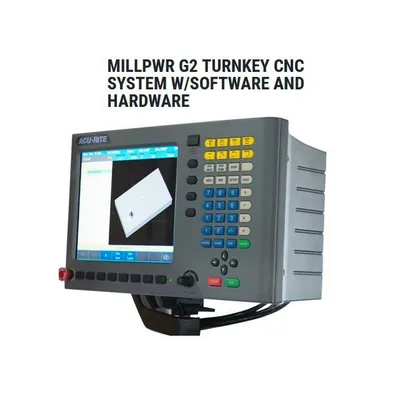

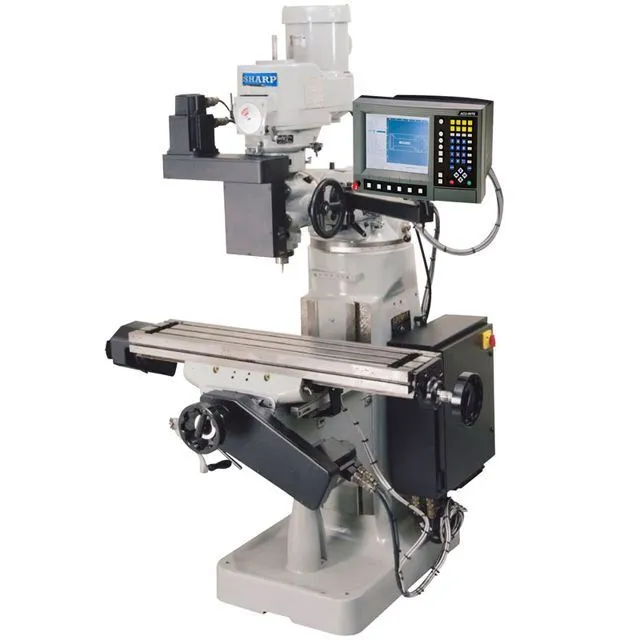

This is a simple, easy to use 3 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The Millpwr G2 CNC has G code and conversational type programming.
| Power | 3 hp | 2.2 kW |
| Taper | R8 | R8 |
| Control | CNC (AcuRite Millpwr G2 CNC 3-Axes) | CNC (AcuRite Millpwr G2 CNC 3-Axes) |
| Weight | 3,000 lbs. | 3,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Acu-Rite electrical edge finder
6” “Kurt” Vise with Swivel Base
Drill chuck
Sharp Power Kneel
Coolant System with Chip Pan At Base
Power Draw Bar
R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
Clamping Kit (52 pcs/steel rack)
Halogen Work light
Riser block 6
440 V transformer
4th axes Digital Readout System (on knee)
