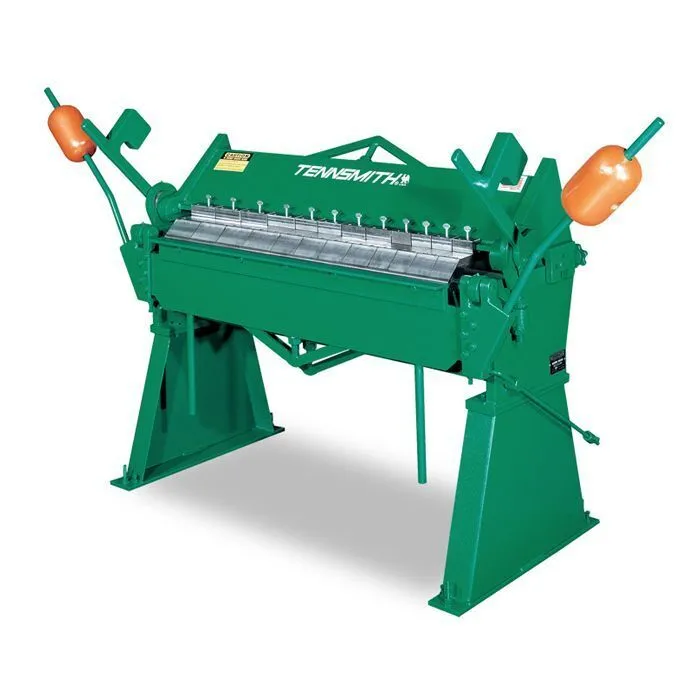

NEW TENNSMITH F6-96-12
Overview
Description
TENNSMITH F6-96-12 Box and Pan Hand Brake has a bending length of 96 inches (8 feet) and a mild steel capacity of 12 gauge.Designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for quick setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Specifications
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
|---|---|---|
| Capacity (ga) Stainless Steel | 16 gauge | 16 gauge |
| Bending Length (inches) | 96" | 2,438.4 mm |
| Max Box Depth | 6" | 152.4 mm |
| Beam Adjustment, Front and Back | 0.5" | 12.7 mm |
| Finger Widths | 3, 4 and 5 in. | 3, 4 and 5 in. |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Maximum Lift of Beam | 2.25" | 57.15 mm |
| Minimum Reverse Bend | 0.25" | 6.35 mm |
| Machining Length | 137" | 3,479.8 mm |
| Machine Width | 53" | 1,346.2 mm |
| Machine Height | 60" | 1,524 mm |
| Shipping Weight | 3,250 lb | 1,474.2 kg |
| Dimensions | 137 x 53 x 60 in. (LxWxH) Counterweights in Place | 137 x 53 x 60 in. (LxWxH) Counterweights in Place |
| Weight | 3250 lbs. | 3250 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
Optional Items:
*85270: Extension Fingers (pair) for F6 Models: $475.00
Right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc.
*85275: Open End Fingers (pair) for F6 Models: $625.00
Provides triangular, square, tapered and rectangular tube forming abilities
*85280: F6 Radius Fingers (Please Specify Radii) - per inch: $56.00
