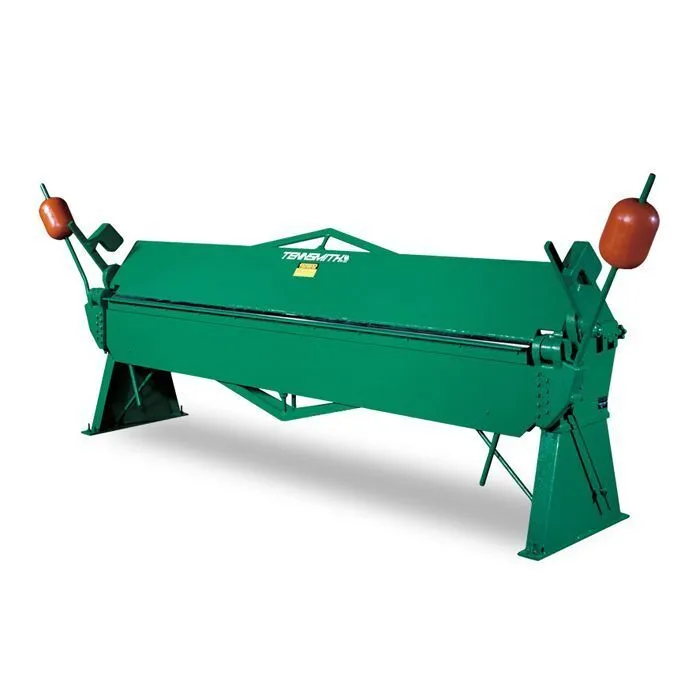

TENNSMITH HB121-18 Heavy Duty Hand Brake has a bending length of 121 inches (10 feet) and a mild steel capacity of 18 gauge. Welded steel plate construction and heavy truss rods and braces provide strength and durability. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.
| Capacity (ga) Mild Steel | 18 gauge | 18 gauge |
| Bending Length | 121" | 3,073.4 mm |
| Beam Adjustment | 0.5" | 12.7 mm |
| Min Reverse Bend | 0.25" | 6.35 mm |
| Maximum Lift of Beam | 1.875 | 1.875 |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Machines Dimensions L/W/H | 159 x 52 x 60 in. Counterweights in Place | 159 x 52 x 60 in. Counterweights in Place |
| Shipping Weight | 2,300 lb | 1,043.3 kg |
| Dimensions | 159 x 52 x 60 in. Counterweights in Place | 159 x 52 x 60 in. Counterweights in Place |
| Weight | 2300 lbs. | 2300 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
