New | in-Stock

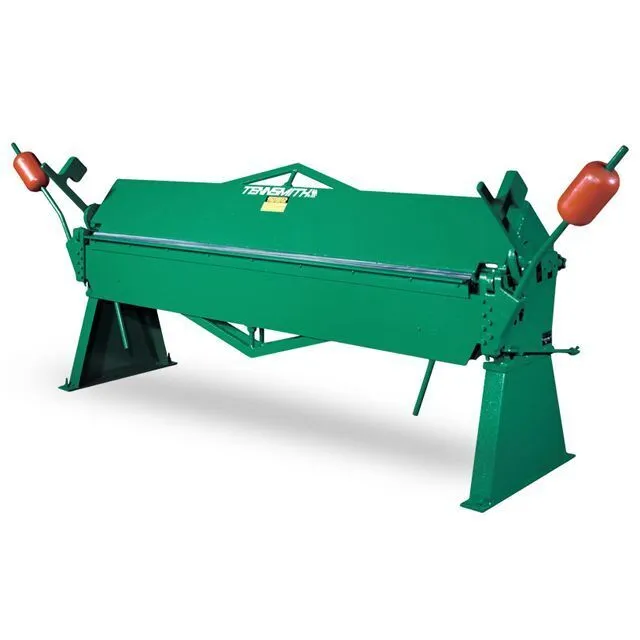

NEW TENNSMITH HB97-12

Florida, United States
Asking Price
USD $10,150.00
1 available
3,882Listings|10Followers
Overview
Apron Brakes

TENNSMITH HB97-12 Heavy Duty Hand Brake has a bending length of 97 inch and a mild steel capacity of 12 gauge. Designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability. Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.

Specs
Capacity (ga) Mild Steel
12 gauge
12 gauge
Bending Length
97"
2,463.8 mm
Beam Adjustment
0.5"
12.7 mm
Min Reverse Bend
0.25"
6.35 mm
Maximum Lift of Beam
2.25
2.25
Minimum Flange in Capacity Material
1"
25.4 mm
Machines Dimensions L/W/H
145 x 54 x 63-1/2 in. Counterweights in Place
145 x 54 x 63-1/2 in. Counterweights in Place
Shipping Weight
2,800 lb
1,270.1 kg
Dimensions
145 x 54 x 63-1/2 in. Counterweights in Place
145 x 54 x 63-1/2 in. Counterweights in Place
Weight
2800 lbs.
2800 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
