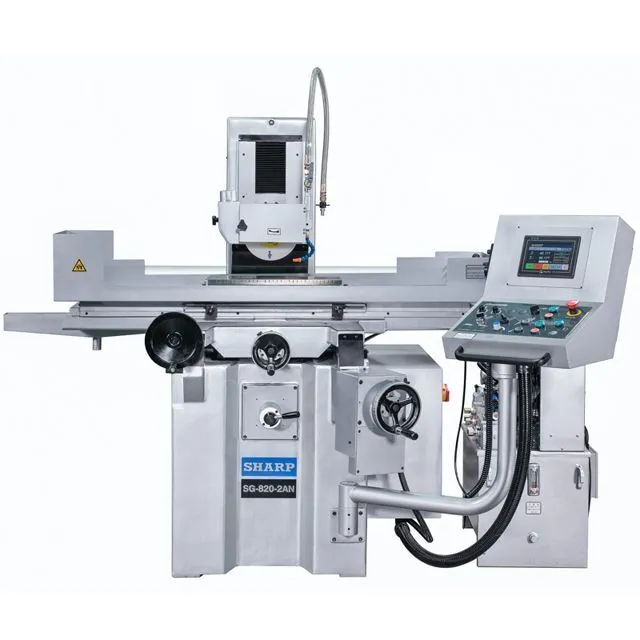

NEW SHARP SG-820-2AN

Florida, United States
3,852Listings|9Followers
Overview
Reciprocating Surface Grinders

The model has hydraulic table feed and motorized cross saddle feed. Besides regular surface grinding it can perform slot grinding.

Specs
Table Size
8" x 20"
8" x 20"
Max Longitudinal Travel
23.6"
59.9 cm
Max Lateral Travel
9.25"
23.5 cm
Spindle Speed
3,420 RPM
3,420 RPM
Power
2 hp
1.5 kW
Dimensions
6.91 x 4.91 x 6.5 ft.
6.91 x 4.91 x 6.5 ft.
Weight
2,600 lbs.
2,600 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS - CALL FOR PRICE:

Permanent magnetic chuck (fine pole)
Electro-magnetic chuck (fine pole) w/ control
Overhead manual parallel dresser
Balancing stand
Extra wheel adapter (flange)
Dust collector
Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V
Digital Readout System
CE mark
