The model has hydraulic table feed and motorized cross saddle feed. Besides regular surface grinding it can perform slot grinding.
| Table Size | 8" x 20" | 8" x 20" |
| Max Longitudinal Travel | 23.6" | 59.9 cm |
| Max Lateral Travel | 9.25" | 23.5 cm |
| Spindle Speed | 3,420 RPM | 3,420 RPM |
| Power | 2 hp | 1.5 kW |
| Dimensions | 6.91 x 4.91 x 6.5 ft. | 6.91 x 4.91 x 6.5 ft. |
| Weight | 2,600 lbs. | 2,600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

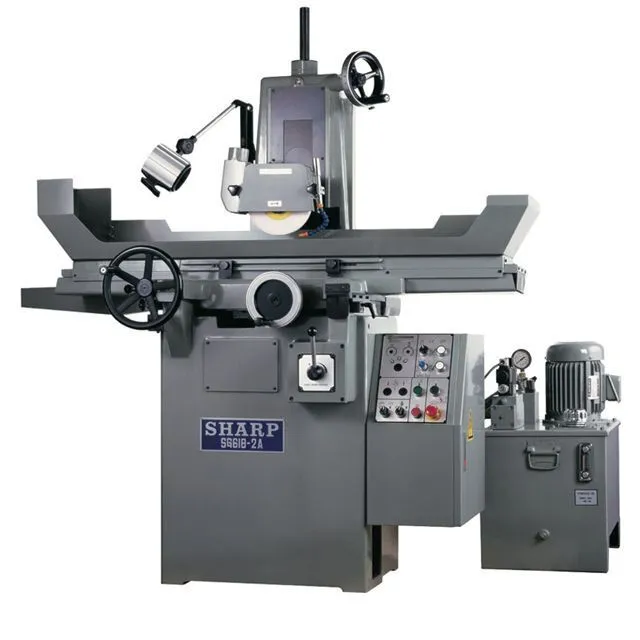

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Permanent magnetic chuck (fine pole)
Electro-magnetic chuck (fine pole) w/ control
Overhead manual parallel dresser
Balancing stand
Extra wheel adapter (flange)
Dust collector
Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V
Digital Readout System
CE mark
