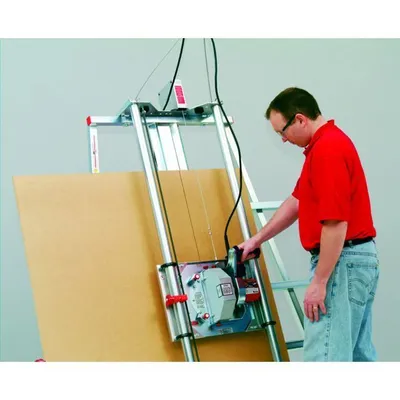

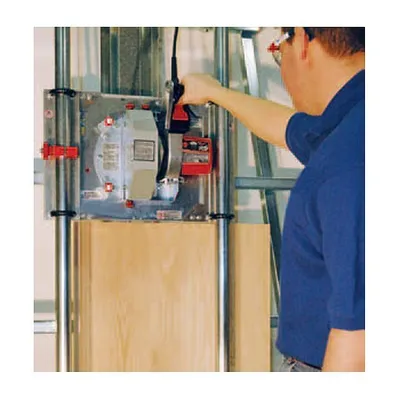

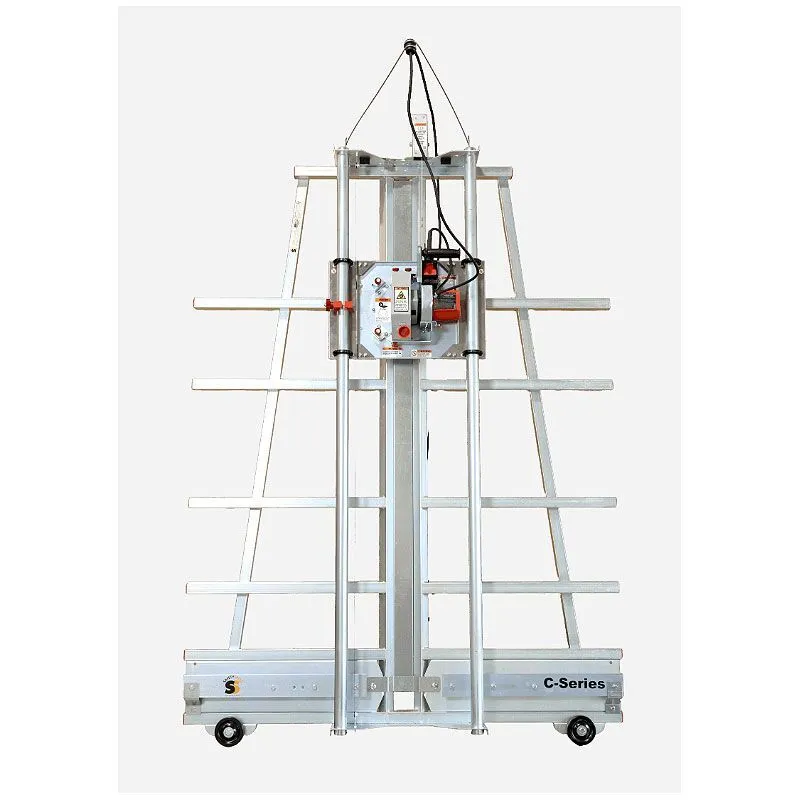

The SAFETY SPEED CUT C5 Vertical Panel Saw is ideal for cutting sheets of material 64″ wide. 3-1/4 HP, 15 amp industrial duty saw motor. Quick change from vertical to horizontal cutting.
| Frame Length | 60" | 1,524 mm |
| Max. Crosscut | 64" | 1,625.6 mm |
| Max. Rip Cut | 96" | 2,438.4 mm |
| Max. Cut Thickness | 1.75" | 44.45 mm |
| Cut Accuracy, Straight and Square | 0.0312" | 0.7937 mm |
| Saw Blade Diameter | 8" | 203.2 mm |
| Motor | 3.2 hp | 2.4 kW |
| Voltage | 120 V | 120 V |
| Amps | 15 | 15 |

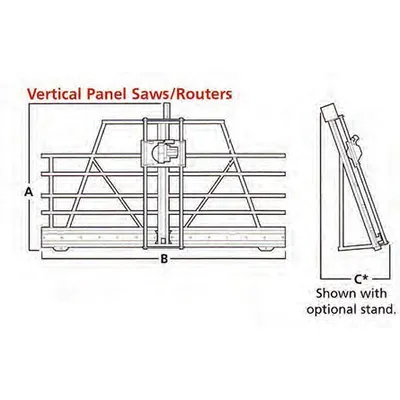

| Shipping Dimensions | 60" x 11" x 83" | 60" x 11" x 83" |
| Shipping Weight | 219 lb | 99.3 kg |
MOTOR OPTIONS:
3.25 HP, 15 amp, 120 Volt
3.25 HP, 7.5 amp, 220 Volt
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
WARRANTY: LIFETIME - Frame
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Gold Package: Customized to maximize the benefits for cabinetry and furniture shops.
Includes: MID-WAY FENCE™, QUICK STOP™ Gauge 8 ft., Saw Blade, Fixed Stand, Wheels
- Silver Package: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP™ Gauge 8 ft., Dust Collection Kit (Vacuum additional), Saw Blade, Fixed Stand Wheels
- Bronze Package: Customized to maximize the benefits for building component shops.
Includes: QUICK STOP™ Gauge 5 ft., Saw Blade, Fixed Stand, Wheels
FACTORY OPTIONS:
220V Upgrade (per motor)
2" / 50mm Depth of Cut (C & H Series, 6400, 6800)
