NEW JET HVBS-712D

Florida, United States
Asking Price
USD $2,299.00
1 available
3,886Listings|10Followers
Overview
Horizontal Band Saws

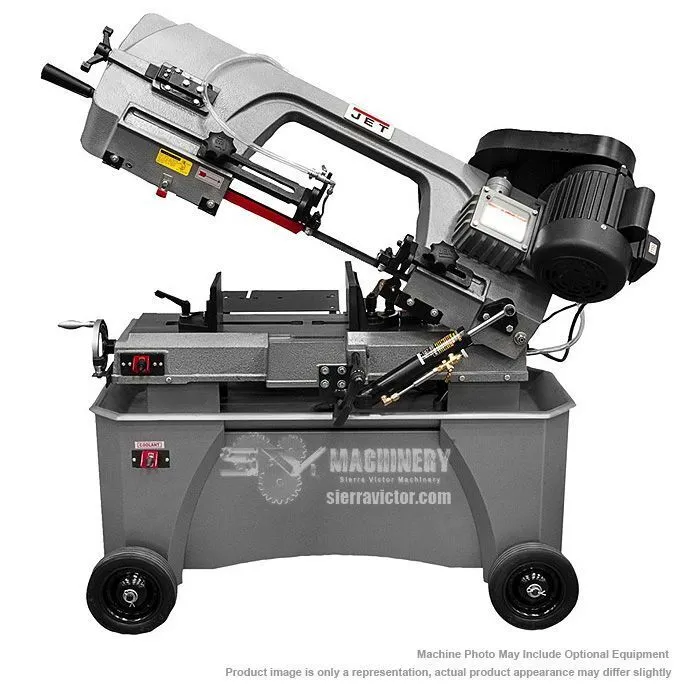

JET HVBS-712D Deluxe Horizontal/Vertical Bandsaw has a cutting capacity of 7 x 12 inches. Large 10 x 12 inch infeed table assembly extends the support area and can be used in either horizontal or vertical positions. Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position.

Specs
Cutting Capacity
7 x 12 in. (W x D)
7 x 12 in. (W x D)
Round at 90°
7 in.
7 in.
Round at 45°
5 in.
5 in.
Square at 90°
7 x 7 in.
7 x 7 in.
Square at 45°
5 x 5 in.
5 x 5 in.
Rectangle at 90°
1 (H) x 12 (W) / 2 (H) x 1-1/4 (W) / 4 (W) x 11 (W) / 7 (H) x 10-1/4 (W) in.
1 (H) x 12 (W) / 2 (H) x 1-1/4 (W) / 4 (W) x 11 (W) / 7 (H) x 10-1/4 (W) in.
Rectangle at 45°
6 (H) x 4 (W) in.
6 (H) x 4 (W) in.
Blade Size
3/4 x .032 x 93 in.
3/4 x .032 x 93 in.
Blade Wheel Diameter
11.75"
298.45 mm
Blade Speed
86, 132, 178, 260 sfpm
86, 132, 178, 260 sfpm
Motor
3/4 HP
3/4 HP
Power
115/230v, 1-Phase
115/230v, 1-Phase
Prewired
115v
115v
Bed Height
22.25"
565.15 mm
Throat Depth
7"
177.8 mm
Vertical Tables
10 x 12 in.
10 x 12 in.
Vise Swivels
45°
45°
Dimensions
48 x 17 x 44 in.
48 x 17 x 44 in.
Weight
374 lbs.
374 lbs.

*Bed Height is with out Wheels

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
