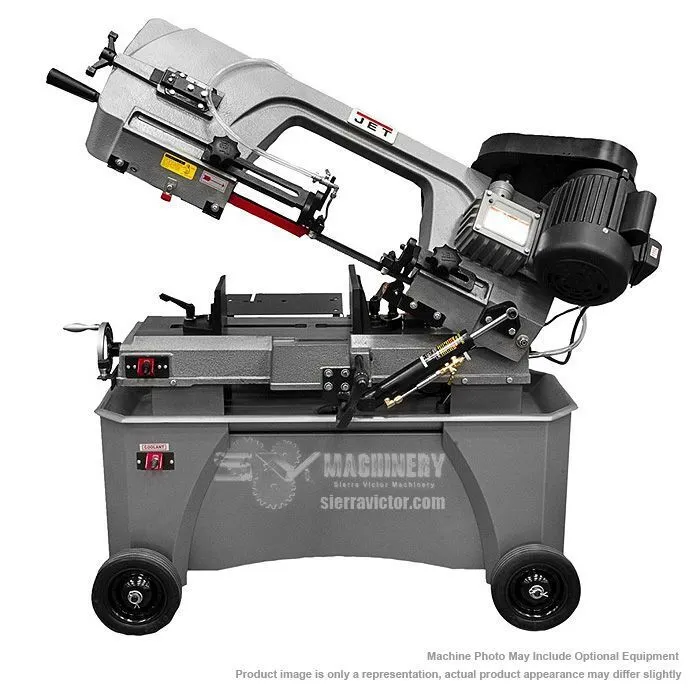

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.
| Cutting Capacity | 7 x 12 in. (W x D) | 7 x 12 in. (W x D) |
| Round at 90° | 7 in. | 7 in. |
| Round at 45° | 4.5 in. | 4.5 in. |
| Square at 90° | 7 x 7 in. | 7 x 7 in. |
| Square at 45° | 4-1/2 x 4-1/2 in. | 4-1/2 x 4-1/2 in. |
| Rectangle at 90° | 1 (H) x 12 (W) / 2 (H) x 11-1/4 (W) / 4 (H) x 11 (W) / 7 (H) x 10-3/8 (W) in. | 1 (H) x 12 (W) / 2 (H) x 11-1/4 (W) / 4 (H) x 11 (W) / 7 (H) x 10-3/8 (W) in. |
| Rectangle at 45° | 6-1/2 (H) x 4-1/2 (W) in. | 6-1/2 (H) x 4-1/2 (W) in. |
| Blade Size | 3/4 x .032 x 93 in. | 3/4 x .032 x 93 in. |
| Blade Wheel Diameter | 11.75" | 298.45 mm |
| Blade Speed | 86, 132, 178, 260 sfpm | 86, 132, 178, 260 sfpm |
| Motor | 3/4 HP | 3/4 HP |
| Power | 115/230v, 1-Phase | 115/230v, 1-Phase |
| Prewired | 115v | 115v |
| Bed Height | 22.25" | 565.15 mm |
| Throat Depth | 7" | 177.8 mm |
| Vertical Tables | 5 x 6 in. | 5 x 6 in. |
| Vise Swivels | 45° | 45° |
| Dimensions | 48 x 17 x 40 in. | 48 x 17 x 40 in. |
| Weight | 374 lbs. | 374 lbs. |
*Bed Height is with out Wheels
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
