NEW BIRMINGHAM H-6010

Florida, United States
3,961Listings|11Followers
Overview
Power Squaring Shears (Gauge)

BIRMINGHAM H-6010 Deluxe Hydraulic Shear has a 61 inch cutting length. 10 gauge mild steel and 13 gauge stainless steel capacity. Standard equipment includes: Blades, 24" Manual back gauge, (2) 24" Front support arms, (2) 14" Side gauges (R/L) with dual scales, Finger guard, Spring hold downs and Removable foot control pedal with safety protection and tools.

Specs
Max Sheet Size (ft)
5'
1,524 mm
Max Sheet Size (in.)
61"
154.9 cm
Length of Blade
5'
1.5 m
Length of Blade
61"
1,549.4 mm
Shearing Capacity - Mild Steel
10 gauge
10 gauge
Shearing Capacity - Stainless Steel
13 gauge
13 gauge
Strokes Per Minute (S.P.M.)
26
26
Rake Angle
1° 40'
1° 40'
Front Gauge
24"
609.6 mm
Back Gauge
24"
609.6 mm
Motor Power
5 hp
3.7 kW
Dimensions
84" x 36" x 55"
84" x 36" x 55"
Weight
3,500 lbs.
3,500 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

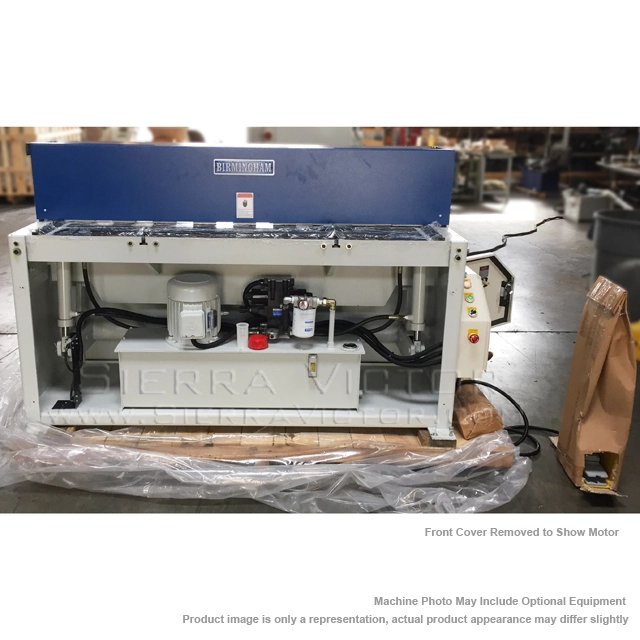

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
