The SAFETY SPEED CUT Model 7400 Vertical Panel Saw has a 64 inch vertical cut. 2 Hp, 1~ continuous duty induction saw motor. delivers a cutting accuracy to 0.005” guaranteed.
| Frame Length | 120" | 3,048 mm |
| Max. Crosscut | 64" | 1,625.6 mm |
| Max. Cut Thickness | 2" | 50.8 mm |
| Cut Accuracy, Straight and Square | 0.015" | 0.381 mm |
| Saw Blade Diameter | 8" | 203.2 mm |
| Motor | 2 hp | 1.5 kW |
| Phase | 1 | 1 |
| Voltage | 230 V | 230 V |
| Amps | 11.0 | 11.0 |
| Dimensions | 95" x 124" x 42" | 95" x 124" x 42" |
| Shipping Weight | 950 lb | 430.9 kg |
MOTOR OPTIONS:
3HP, 3~ 230V, 7.6 AMPS
3HP, 3~ 460V, 3.8 AMPS
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts

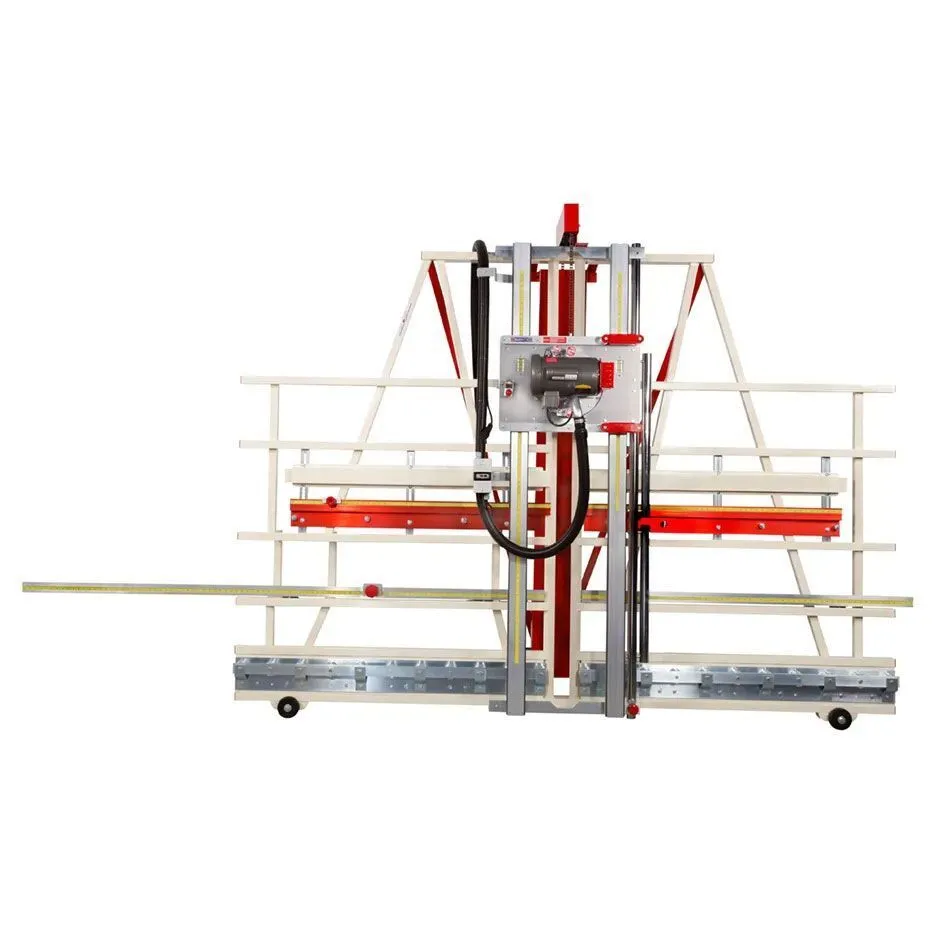

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw.
- Gold Package: Customized to maximize the benefits for cabinetry and furniture shops.
Includes: MID-WAY FENCE™, QUICK STOP™ Gauge 8 ft., Saw Blade, Fixed Stand, Wheels
- Silver Package: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP™ Gauge 8 ft., Dust Collection Kit (Vacuum additional), Saw Blade, Fixed Stand Wheels
- Bronze Package: Customized to maximize the benefits for building component shops.
Includes: QUICK STOP™ Gauge 5 ft., Saw Blade, Fixed Stand, Wheels
