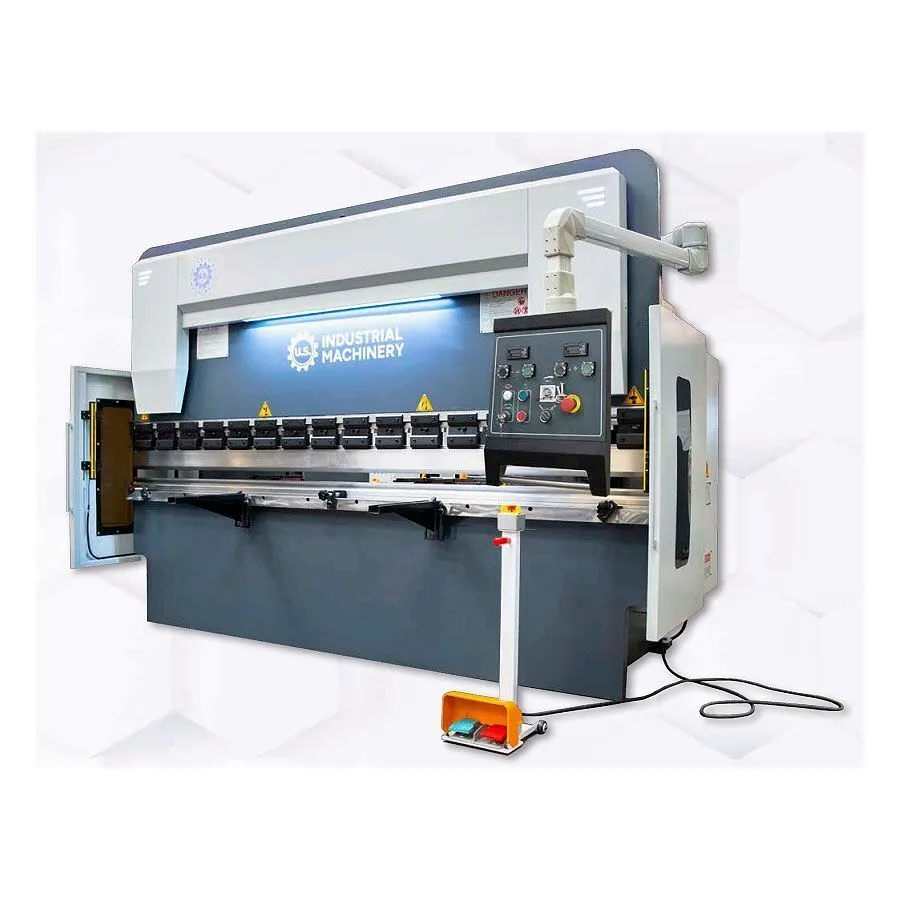

NEW US INDUSTRIAL USHB44-6HM

Florida, United States
Asking Price
USD $38,990.00
1 available
3,886Listings|10Followers
Overview
Press Brakes

U.S. INDUSTRIAL USHB44-6HM Hydraulic Manual Press Brake w/Front Operated Power Backgauge and Power Ram Adjust has a 44Ton working pressure and 6 ft Length of working table. The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.

Specs
Pressure Tonnage
44 T
39,916.2 kg
Distance Between Housings
63.7"
1,618 mm
Table Length
78.7"
1,999 mm
Throat depth
7.8"
198.12 mm
Pressing Speed
Dependent on Tool Load
Dependent on Tool Load
Stroke Adjustment of Ram
1.96"
49.784 mm
Rapid Ram Travel Speed
2.4 in/sec.
61 mm/sec.
Rapid Ram Retreat Speed
2 in/sec.
50.8 mm/sec.
Ram Travel
3.93"
99.822 mm
Open Height
12.5"
317.5 mm
Backgauge Travel
24"
609.6 mm
Hydraulic Oil Capacity
36 gal
136.3 L
Motor
7.5 HP, 220 or 440V, 3 ph (specify)
7.5 HP, 220 or 440V, 3 ph (specify)
Shipping Dimensions (L x W x H)
101 x 60 x 80 in.
101 x 60 x 80 in.
Shipping Weight
7,700 lb
3,492.7 kg
Dimensions
101 x 60 x 80 in.
101 x 60 x 80 in.
Weight
7700 lbs.
7700 lbs.

*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

Optional Items - Call for price:
Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
Manual (hand-crank) Mechanical Bed Crowning Device
Upgrade to Cam-Lever Quick Action Ram Clamps
Training in our Memphis, TN Showroom
Training at customer site, less than 300 miles from Memphis
Training at customer site, more than 300 miles from Memphis
Training outside continental USA
