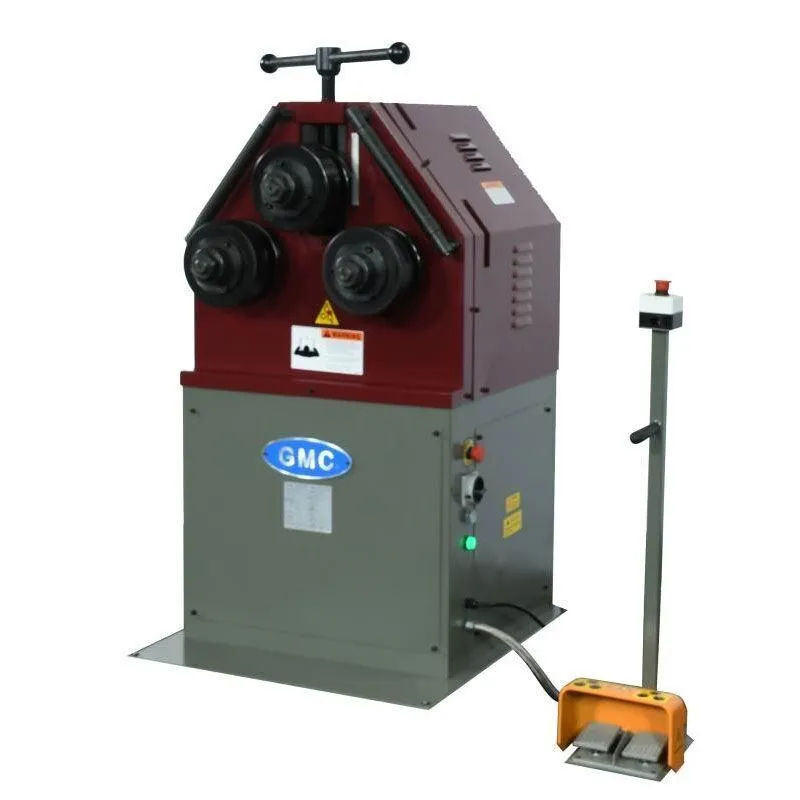

GMC PRB-55-1PH Angle Roll Bender with Manual Positioning has a 4 HP Motor, rated at 220V, single phase.2" schedule 40 pipe is the maximum bending capacity, 2.5" round tube 14 Ga. and 2" square tube.Robust, all steel and welded framework.
| Roll Diameter Ø | 7.5" | 0.2 m |
| Angle Roll Type | Manual | Manual |
| Shaft Ø | 2" | 50.8 mm |
| Motor Power | 4 HP, Single Phase Prewired: 220VAC | 15A | 4 HP, Single Phase Prewired: 220VAC | 15A |
| Roller Speed | 16 RPM | 16 RPM |
| Roll Adjustment | Manual | Manual |
| Oil Tank Capacity (only fill up 90%) | 7 gal | 26.5 L |
| Recommended Hydraulic Oil | Texaco-Rando HD-68 Hydraulic Oil Shell AW-68 Hydraulic Oil | Texaco-Rando HD-68 Hydraulic Oil Shell AW-68 Hydraulic Oil |
| Dimensions | 40 x 35 x 65 in. | 40 x 35 x 65 in. |
| Weight | 1,120 lbs. | 1,120 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for Pricing:
* Anti-twisting attachment
* One Roll Set (3 rolls) - for pipe & round tubing, any size:
* 34T-PRB55: TUBE ROLL SETS: 3/4"
* 1T-PRB55: TUBE ROLL SETS: 1"
* 114T-PRB55: TUBE ROLL SETS: 1-1/4"
* 112T-PRB55: TUBE ROLL SETS: 1-1/2"
* 2T-PRB55: TUBE ROLL SETS: 2"
* 212T-PRB55: TUBE ROLL SETS: 2-1/2"
* 34P-PRB55: PIPE ROLL SETS: 3/4"
* 1P-PRB55: PIPE ROLL SETS: 1"
* 114P-PRB55: PIPE ROLL SETS: 1-1/4"
* 112P-PRB55: PIPE ROLL SETS: 1-1/2"
* 2P-PRB55: PIPE ROLL SETS: 2"
