OUT OF STOCK - CALL FOR AVAILABILITY

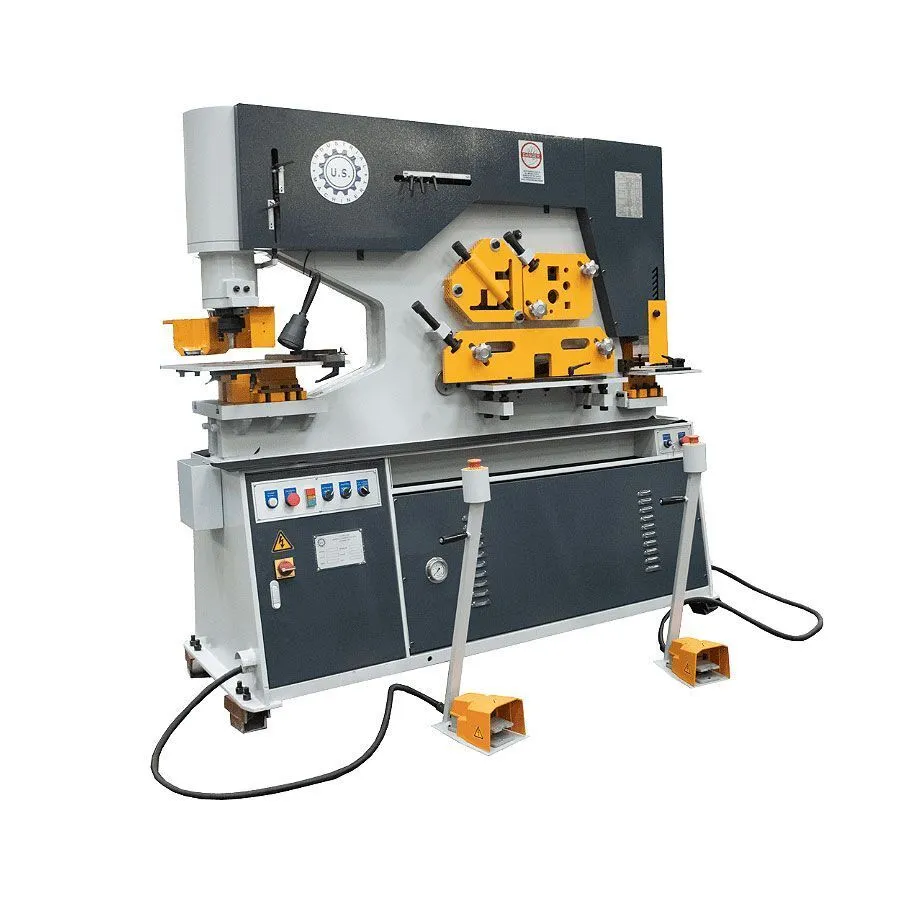

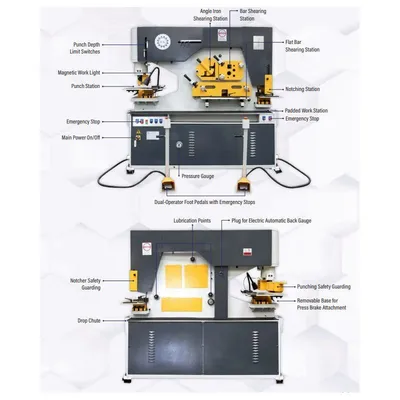

U.S. INDUSTRIAL USHI-66T-DO-XT Hydraulic Ironworker w/12" Standard Punch Throat has a punch tonnage of 66 Tons. Five workstations: punch, plate shear, angle shear, rod shear notcher plus brake attachment Has a 7.5 HP motor, 3-phase with 220V or 440V.
| Punch Tonnage | 66 T | 59,874.3 kg |
| Punching Thickness | 0.625" | 15.875 mm |
| Punching Diameter | 1-1/4 in. | 1-1/4 in. |
| Flat Bar Shear | Max. Thickness 12 W x 5/8 in. Thick / Max. Length 16 W x 5/16 in. Thick * | Max. Thickness 12 W x 5/8 in. Thick / Max. Length 16 W x 5/16 in. Thick * |
| Flat Bar Shear Length | 16" | 406.4 mm |
| Angle Shear 90° | 5 x 5 x 3/8 in. | 5 x 5 x 3/8 in. |
| Angle Shear 45° | 2 x 2 x 1/4 in. | 2 x 2 x 1/4 in. |
| Round Bar Shear | 1-3/4 in. | 1-3/4 in. |
| Square Bar Shear | 1-5/8 in. | 1-5/8 in. |
| Notcher | Thickness 3/8 x Width 2-1/4 x Depth 4 in. | Thickness 3/8 x Width 2-1/4 x Depth 4 in. |
| Throat Depth | 12" | 304.8 mm |
| Stroke Length | 0 - 3-1/8 in. | 0 - 3-1/8 in. |
| Motor | 7.5 HP | 7.5 HP |
| Electrics | 220v or 440v, 3-phase (Specify) | 220v or 440v, 3-phase (Specify) |
| Oil Capacity/Reservoir | 20 gal | 75.7 L |
| Dimensions | 64 x 28 x 69 in. | 64 x 28 x 69 in. |
| Weight | 3,527 lbs | 3,527 lbs |
* With squaring arm removed
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
UPIW1500 - Round Punch and Die Set for 66 and 90 Ton Models
UPIW1501 - Round Punch and Die Set for 125 and 155 Ton Models
UPIW1502 - Pipe Notcher Housing Assembly
UPIW1503 - 1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1504 - 3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1505 - 1" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1506 - 1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1507 - 1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe
UPIW1508 - 2" Ironworker Pipe Notching Die for Schedule 40 Pipe
