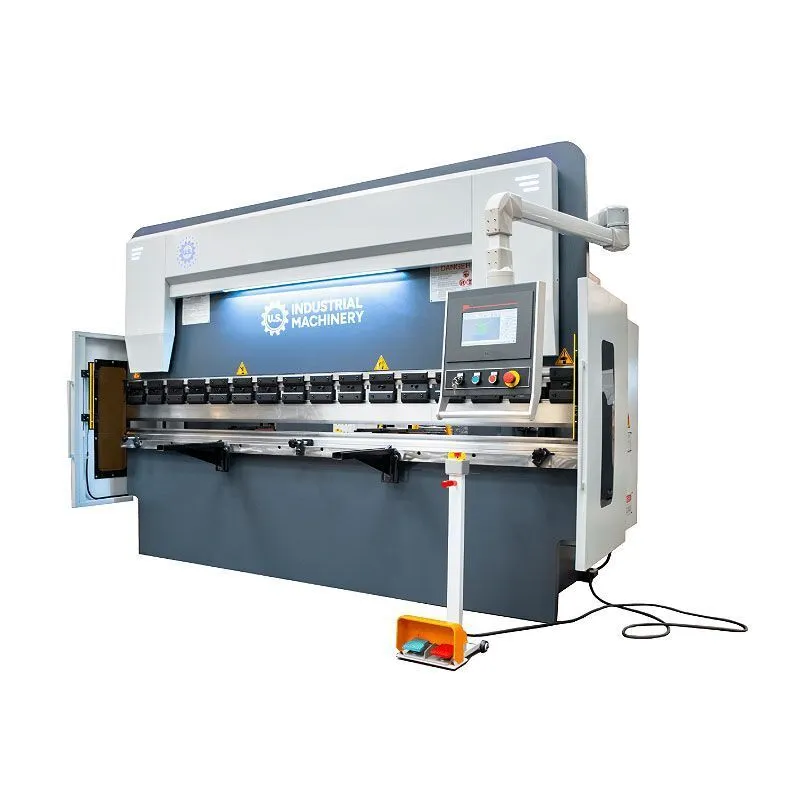

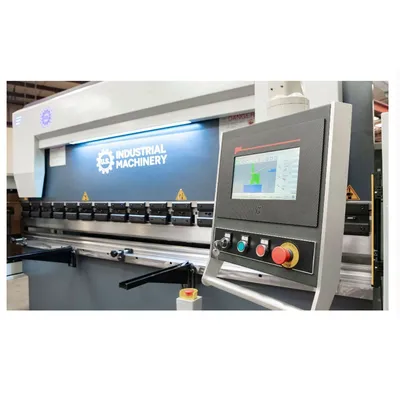

U.S. INDUSTRIAL USHB44-6CNC CNC Hydraulic Press Brake has a 44 Ton working pressure and 6 ft Length of working table.Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. Key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.
| Pressure/Tonnage | 44 T | 39.916 t |
| Throat Depth | 7.8" | 198.12 mm |
| Table Length | 78.7" | 1,999 mm |
| Pressing Speed | Dependent on Tool Load | Dependent on Tool Load |
| Rapid Ram Travel Speed | 2.4 in/sec. | 61 mm/sec. |
| Rapid Ram Retreat Speed | 2 in/sec. | 50.8 mm/sec. |
| Distance Between Housings | 63.7" | 1,618 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Main Motor | 7.5 HP, 220 or 440V, 3 ph (specify) | 7.5 HP, 220 or 440V, 3 ph (specify) |
| Stroke Adjustment of Ram | 1.96" | 49.784 mm |
| Ram travel | 3.93" | 99.822 mm |
| Open Height | 12.5" | 317.5 mm |
| Hydraulic Oil Capacity | 36 gal | 136.3 L |
| Shipping weight | 7,700 lb | 3,492.7 kg |
| Dimensions | 101 x 60 x 80 in. | 101 x 60 x 80 in. |
| Weight | 7700 lbs. | 7700 lbs. |
*Due to changes in economic conditions, US Industrial Machines are subject to a tariff surcharge.
Please contact our sales team to verify pricing.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

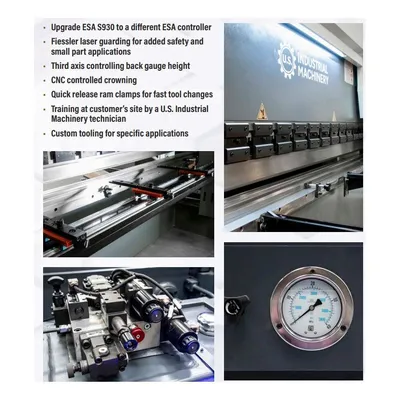

Optional Items - Call for price:
*Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4)
*Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4)
*Add Third Axis (Back Gauge Height controlled from operator panel.)
*CNC Controlled Mechanical Auto Crown
*High Speed Servo Back Gauge
*Upgrade to Cam-Lever Quick Action Ram Clamps
*Training in our Memphis, TN Facility
*Training at customer site, more than 300 miles from Memphis
*Training at customer site, more than 300 miles from Memphis (If outside continental USA, please call for quote.)
