NEW ROPER WHITNEY U-616-6
Overview
Description

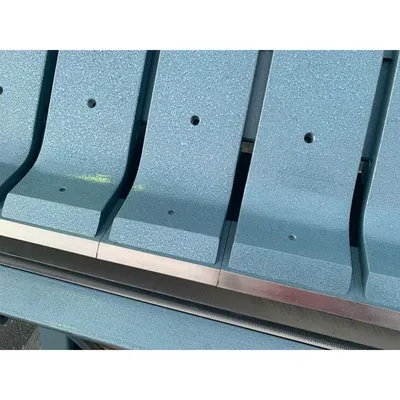

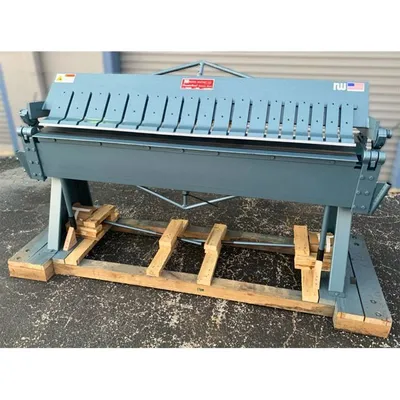

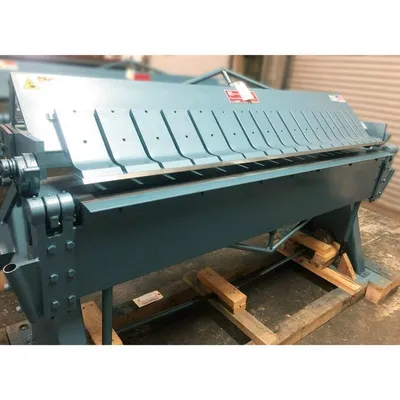

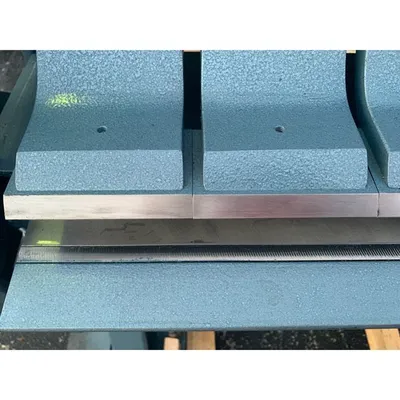

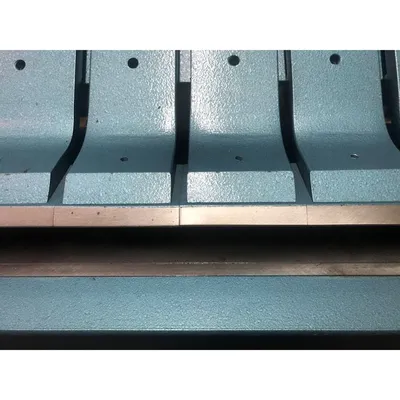

ROPER WHITNEY U-616-6 Connecticut Box and Pan Bending Brake has a bending length of 72 inches (6 feet) and mild steel capacity of 16 gauge. Features of the Connecticut box and pan bending brake are positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage and more.Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
Specifications
| Capacity (ga) Mild Steel | 16 gauge | 16 gauge |
|---|---|---|
| Bending Length (inches) | 72" | 1,828.8 mm |
| Bending Length (feet) | 6' | 1,828.8 mm |
| Max Box Depth | 6" | 152.4 mm |
| Beam Adjustment, Front and Back | 1.125" | 28.575 mm |

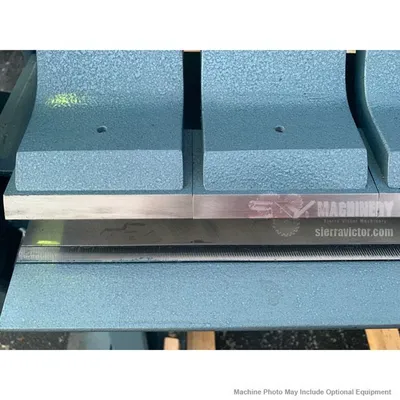

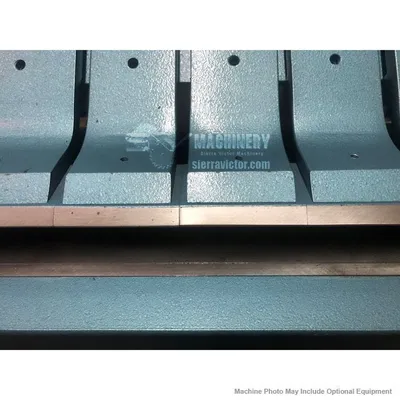

| Finger Widths | 3, 4, 5 in. | 3, 4, 5 in. |
| Maximum Lift of Beam | 1.625" | 41.275 mm |
| Minimum Reverse Bend | 0.25" | 6.35 mm |
| Machining Length | 91" | 2,311.4 mm |
| Machine Width | 54" | 1,371.6 mm |
| Machine Height | 35" | 889 mm |
| Shipping Weight | 1,800 lb | 816.5 kg |
| Dimensions | 91 x 54 x 35 in. | 91 x 54 x 35 in. |
| Weight | 1800 lbs. | 1800 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.

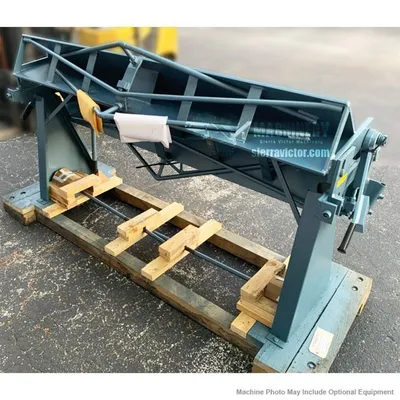

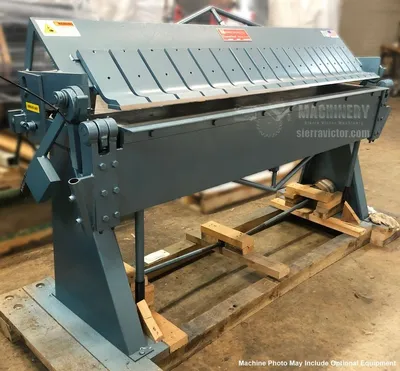

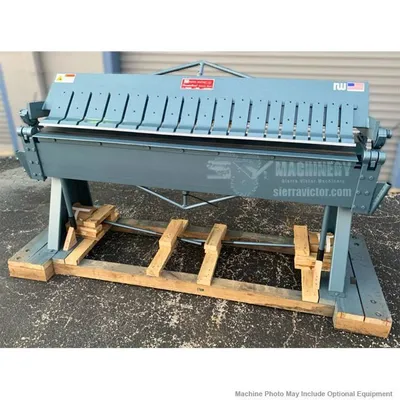

Machine Photo May Include Optional Equipment

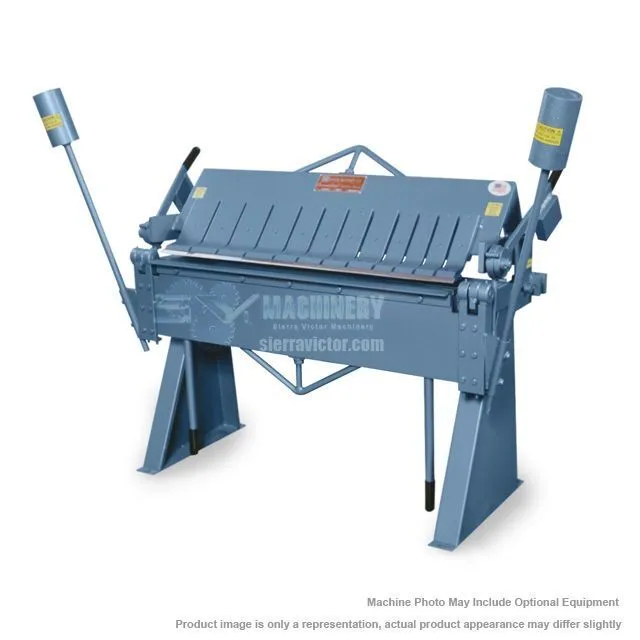

Product image is only a representation, actual product appearance may differ slightly
Equipped With
Optional Items:
Radius Fingers - per inch ...... $36.00
