NEW TENNSMITH HBT72-16

NEW TENNSMITH HBT72-16

Sierra Victor Machinery

USD $9,250.00

Overview

Type:

Box & Pan Brakes including Finger

Manufacturer:

Model:

Stock #:

85450.

Description

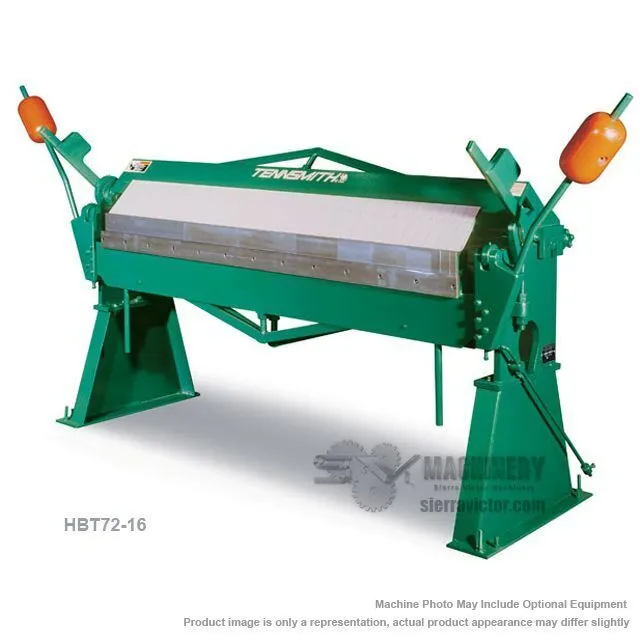

TENNSMITH HBT72-16 Heavy Duty Universal Brake has a bending length of 72 inches and 16 gauge mild steel capacity.TENNSMITH'S HBT is designed to provide forming capabilities for complex parts. This machine is truly a universal hand brake, which allows for the removal of both upper and lower segments of fingers. Complex parts, such as HVAC transverse duct forming and down flanged parts, as well as architectural sheet metal and signage applications, can easily be formed using this machine.

Specifications

ImperialMetric

Capacity (ga) Mild Steel	16 gauge	16 gauge
Bending Length (inches)	72"	1,828.8 mm
Max Box Depth	4"	101.6 mm
Beam Adjustment, Front and Back	0.5"	12.7 mm
Minimum Flange in Capacity Material	1"	25.4 mm
Maximum Lift of Beam	1.5"	38.1 mm
Minimum Reverse Bend	0.625"	15.875 mm
Machining Length	89.5"	2,273.3 mm
Machine Width	36"	914.4 mm
Machine Height	53"	1,346.2 mm
Shipping Weight	2,200 lb	997.9 kg
Dimensions	89-1/2 x 36 x 53 in. (LxWxH) Counterweights in Place	89-1/2 x 36 x 53 in. (LxWxH) Counterweights in Place
Weight	2200 lbs.	2200 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
