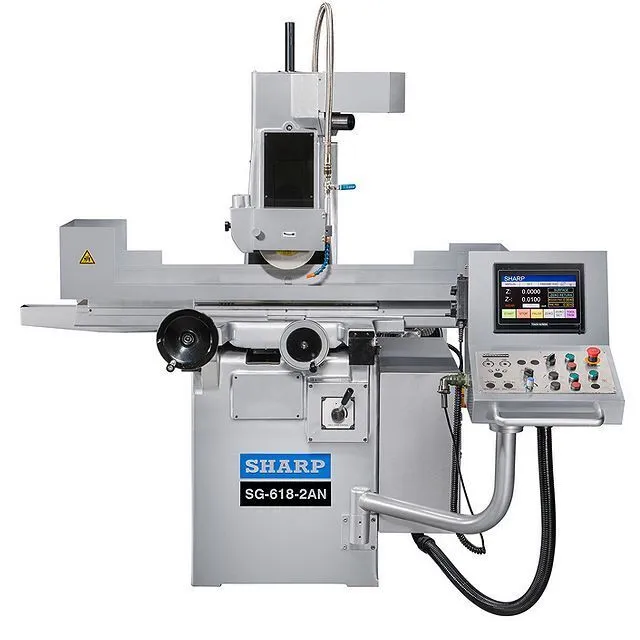

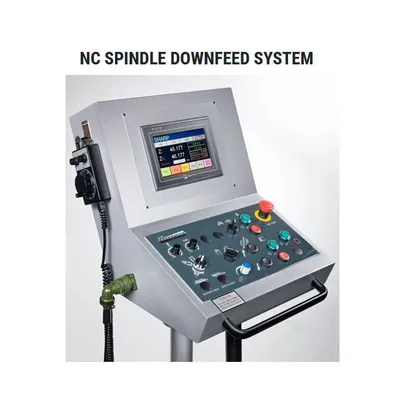

The model has NC spindle downfeed, hydraulic table feed and motorized cross saddle feed. It is designed with auto grinding cycle, spark out, auto return to zero, traverse and plunge grinding cycle.
| Table Size | 6" x 18.3" | 6" x 18.3" |
| Max Longitudinal Travel | 21.6" | 54.9 cm |
| Max Lateral Travel | 7" | 17.8 cm |
| Spindle Speed | 3,600 RPM | 3,600 RPM |
| Power | 1.5 hp | 1.1 kW |
| Dimensions | 6.16 x 6.18 x 3.63 ft. | 6.16 x 6.18 x 3.63 ft. |
| Weight | 2,100 lbs. | 2,100 lbs. |
OPTIONAL ITEMS - CALL FOR PRICE:
Permanent magnetic chuck (fine pole)
Electro-magnetic chuck (fine pole) w/ control
Overhead manual parallel dresser
Balancing stand
Extra wheel adapter (flange)
Dust collector
Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V
Digital Readout System
CE mark
