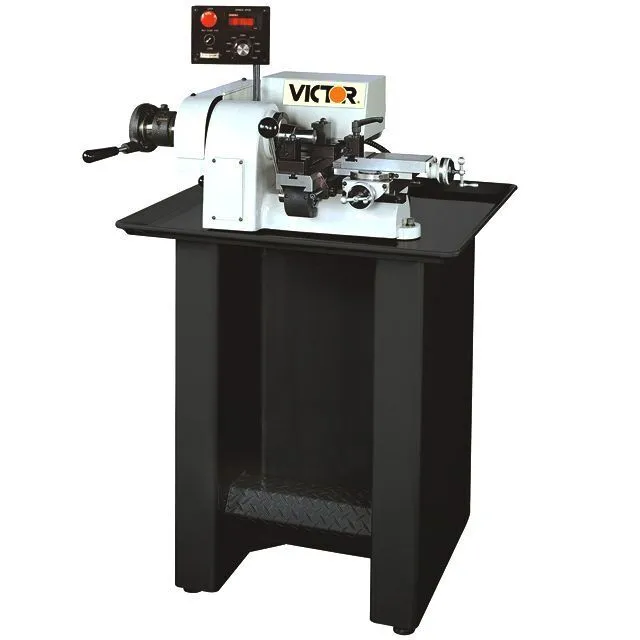

Variable Speed Finishing Lathe Easy to read digital display on actual spindle rpm Welded steel pedestal High accuracy spindle
| Spindle Capacity w/Jaw Chucks | 6" | 152.4 mm |
| Swing Over Bed | 9" | 228.6 mm |
| Spindle Speed | 0~4,000 rpm (5C Collet) | 0~4,000 rpm (5C Collet) |
| Spindle Bore | 2.1875" | 55.563 mm |
| Spindle Nose ID/OD | 5C/4º taper | 5C/4º taper |
| Motor | 1 hp | 0.7 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 36 x 36 x 55 in. | 36 x 36 x 55 in. |
| Weight | 820 lbs. | 820 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Compound slide
5C collet fixture plate
Vertical cut-off slide without cut-off blade
Step chuck and closer
5C collet set
Fixture plate
Expanding collet and pads
Straight and taper turning slide for double tool cross slide
Thread positive stops
Tool holder collet (collet type)
Releasing tap holder (collet type)
