| Spindle Capacity w/Jaw Chucks | 6" | 152.4 mm |
| Spindle Speed | 0~4,000 rpm (5C Collet) | 0~4,000 rpm (5C Collet) |
| Spindle Nose ID/OD | 5C/4º taper | 5C/4º taper |
| Spindle Nose Diameter | 2.189" | 55.601 mm |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 73 x 35 x 75 in. | 73 x 35 x 75 in. |
| Weight | 1,364 lbs. | 1,364 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

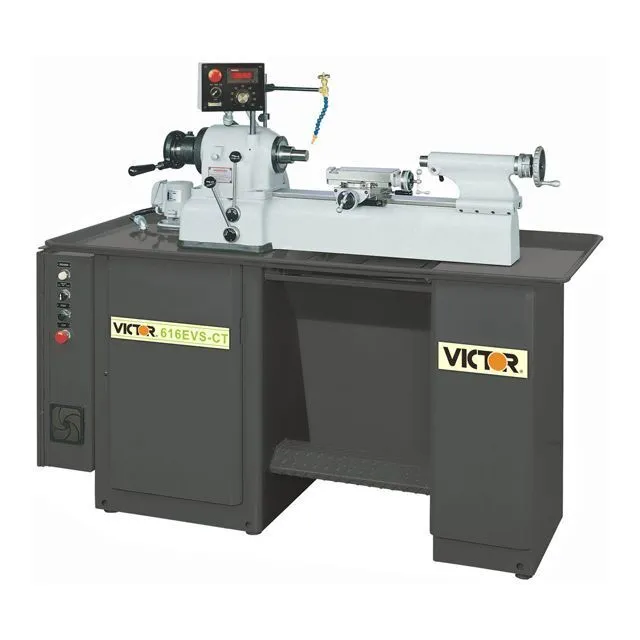

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Releasing tap holder
Adjustable rotary stop
Drill chuck
Drill chuck arbor
Knee tool
Tool holder extension
5C collet fixture plate
5C collet set
Vertical cut-off slide without cut-off blade
Straight and taper turning slide for double tool cross slide
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Chip and coolant shield
Step chuck and closer
Slide tool
Quick action recessing tool
Double tool cross slide
Adjustable holder
Radius turning attachment
Centering and facing tool
Tool setting gauge
Universal collet stop
Quick change adjustable holder
Knurling holder
End-working slide
Releasing die nut holder
Threaded positive stops
Fixture plate
OPTIONAL ACCESSORIES SETUP:
Expanding Collet
Vacuum Chuck
Hydraulic Chuck
Chuck Back Plate
6" 3-Jaw Chuck
Lathe Dog
Face Plate
Pneumatic Chuck
Precision Diaphragm Chucks
Step Chuck
