| Spindle Capacity w/Jaw Chucks | 6" | 152.4 mm |
| Swing Over Bed | 11" | 279.4 mm |
| Distance Between Centers | 18" | 457.2 mm |
| Spindle Speed | 0 ~ 4,000 rpm (5C Collet) / 0 ~ 3,000 rpm (6” 3-Jaw Chuck) | 0 ~ 4,000 rpm (5C Collet) / 0 ~ 3,000 rpm (6” 3-Jaw Chuck) |
| Spindle Nose ID/OD | 5C/4º taper | 5C/4º taper |
| Spindle Nose Diameter | 2.189" | 55.601 mm |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 73 x 30 x 67 in. | 73 x 30 x 67 in. |
| Weight | 2,640 lbs. | 2,640 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

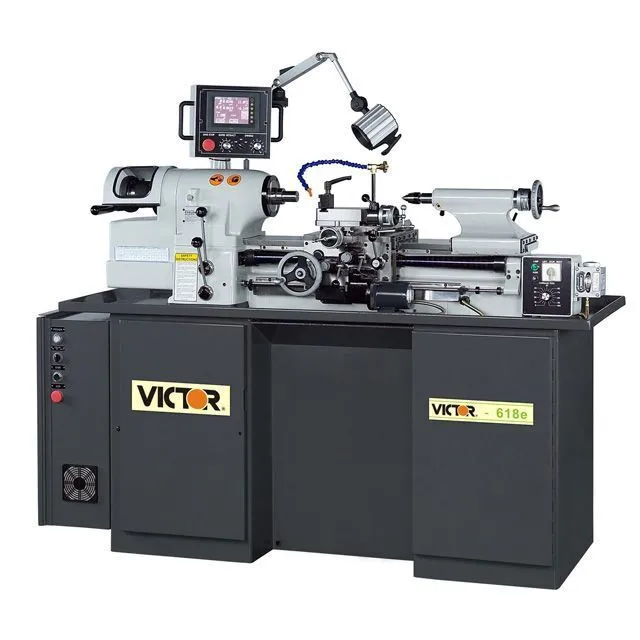

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
OPTIONAL SPECIAL PACKAGE INCLUDES:
6" zero-set 3-jaw chuck with 4º taper back plate
Chip and coolant shield (High impact resistance Lexan Polycarbonate resin)
OPTIONAL ACCESSORIES :
Tool setting gauge
5C collet fixture plate
Chip and coolant shield
Vertical cut-off slide
Steady rest
Follow rest
Face plate
Angle plate
Taper attachment
Radius turning attachment
6" zero-set 3-jaw scroll chuck with 4º taper back plate
6" 4-jaw independent chuck with 4º taper back plate
Micro carriage stop with indicator
4-position indexable tool post
Rear tool holder slide assembly
Step chuck and closer
Threaded positive stops
Universal collet stop
5C collet set
Fixture plate
5C headstock center
Drive plate
Drive dog
Expanding collet and pads
Knurling holder
Turning & facing holder
Drilling & boring bar holder
6-station turret
Bed length indicator
Live center
Quick change tool post
OPTIONAL ACCESSORIES SETUP:
Expanding Collet
Vacuum Chuck
Hydraulic Chuck
Chuck Back Plate
6" 3-Jaw Chuck
Lathe Dog
Face Plate
Pneumatic Chuck
Precision Diaphragm Chucks
Step Chucks
Four Station Turret
Follow Rest
Steady Rest
Vertical Cut-off Slide
Quick Change Tool
Radius Turning Attachment
Taper Turning Attachment
Rear Tool Holder Slide Assembly
