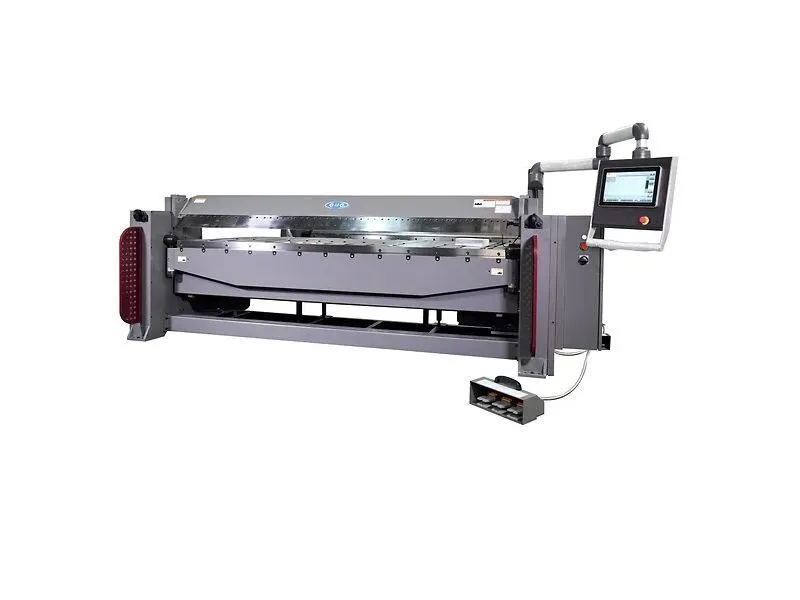

GMC EBB-1014CNC CNC Box and Pan Brake has 10 foot bending length capacity and 14 Gauge mild steel bending capacity. Designed in US and Taiwan quality Machine. ESA S840 CNC control, made in Italy, max. 99 bends per program and up to 2000 Programs Storage. All steel construction for maximum rigidity.
| Capacity (ga) Mild Steel | 14 gauge | 14 gauge |
| Capacity (ga) Stainless | 18 gauge | 18 gauge |
| Bending Length (ft) | 10' | 3,048 mm |
| Close hemming with one piece finger | 26 gauge | 26 gauge |
| Open hemming with one piece finger | 24 gauge | 24 gauge |
| Min Reverse Bend | 0.5" | 12.7 mm |
| Bending Angle/Degree | 0-135 degree (programmable) | 0-135 degree (programmable) |
| Max. Box Depth | 4" | 101.6 mm |
| Beam Opening | 1.875" | 47.625 mm |
| Main Motor | 4HP (for bending leaf) | 4HP (for bending leaf) |
| Servo Motor for back gauge | 2HP, 220V, 3 phase | 2HP, 220V, 3 phase |
| Clamping Motor | 1-1/2HP, 220V, 3 phase | 1-1/2HP, 220V, 3 phase |
| Amperage Draw | 35A | 35A |
| Power Requirement | 220V, 3 phase | 220V, 3 phase |
| Machine Weight | 9,850 lb | 4,467.9 kg |
| Shipping Weight | 10,150 lb | 4,604 kg |
| Overall Dimensions | 168 x 79 x 67 | 168 x 79 x 67 |
| Shipping Dimensions | 174 x 80 x 71 | 174 x 80 x 71 |
| Control | CNC (ESA S840) | CNC (ESA S840) |
| Dimensions | 168 x 79 x 67 | 168 x 79 x 67 |
| Weight | 10150 lbs | 10150 lbs |
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
One day on-site training ……………………………………………………….$4,995.00
Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase …. $4,250.00
(must be purchased and installed by GMC or warranty will be voided)
This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
