The model has hydraulic table feed and motorized cross saddle feed. Besides regular surface grinding it can perform slot grinding.
| Table Size | 6" x 18.3" | 6" x 18.3" |
| Max Longitudinal Travel | 21.6" | 54.9 cm |
| Max Lateral Travel | 7" | 17.8 cm |
| Spindle Speed | 3,600 RPM | 3,600 RPM |
| Power | 1.5 hp | 1.1 kW |
| Dimensions | 6.16 x 6.18 x 3.63 ft. | 6.16 x 6.18 x 3.63 ft. |
| Weight | 2,100 lbs. | 2,100 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

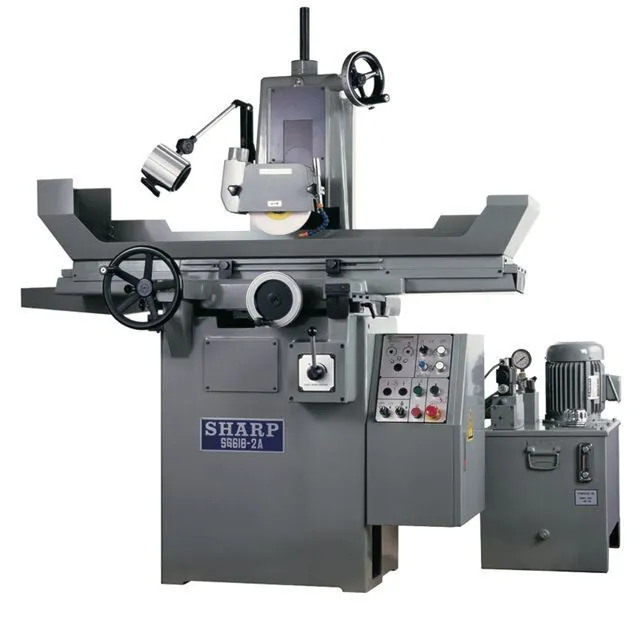

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Permanent magnetic chuck (fine pole)
Electro-magnetic chuck (fine pole) w/ control
Overhead manual parallel dresser
Balancing stand
Extra wheel adapter (flange)
Dust collector
Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V
Digital Readout System
CE mark
