This model has a wire rope type grinding table where the bottom of the table slide way travels along the top of the saddle way. Since both slide ways are in full contact along the entire travel distance, it gives adequate support to the grinding process.
| Table Size | 6" x 18.3" | 6" x 18.3" |
| Max Longitudinal Travel | 18.9" | 48 cm |
| Max Lateral Travel | 7" | 17.8 cm |
| Spindle Speed | 3,600 RPM | 3,600 RPM |
| Power | 1.5 hp | 1.1 kW |
| Dimensions | 55.1 x 39.4 x 70.9 in. | 55.1 x 39.4 x 70.9 in. |
| Weight | 1,540 lbs. | 1,540 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

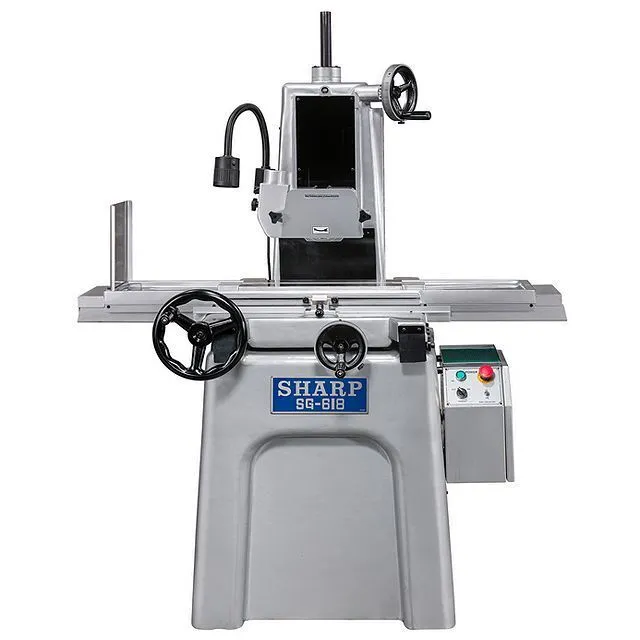

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICCE:
Permanent magnetic chuck
Electro magnetic chuck
Parallel dresser
Balance stand
Extra wheel adapter (flange)
Coolant system (12 gal) w/ splash guard-sg-004
Splash guard for coolant
Dust collector
