NEW KALAMAZOO INDUSTRIES KS690

USD $6,800.00
1 available
Overview
Description

Discover the new KS690 6x90 in. Horizontal Belt Grinder by Kalamazoo Industries. With precise engineering and advanced design, this belt grinder meets demanding industrial needs. Ideal for tackling tough grinding tasks efficiently.

Specifications
Belt Width6"152.4 mm
Belt Length90"2,286 mm
Contact Wheel8"203.2 mm
Contact Wheel8" OD x 6" W serrated 70 duro8" OD x 6" W serrated 70 duro
Belt Speed7200 SFPM7200 SFPM
Platen24.5 in. (reversible and replaceable steel platen)24.5 in. (reversible and replaceable steel platen)
Switch TypeGrinder: Magnetic on/off switch | Rotary on/off switchGrinder: Magnetic on/off switch | Rotary on/off switch
Vacuum System400 ft³/min.11,326,728 cm³/min.
Motor Power5 hp3.7 kW
Phase3-phase3-phase
Voltage220V or 440V (specify)220V or 440V (specify)
Shipping DimensionsL 57 x w 45 x H 54 in.L 57 x w 45 x H 54 in.

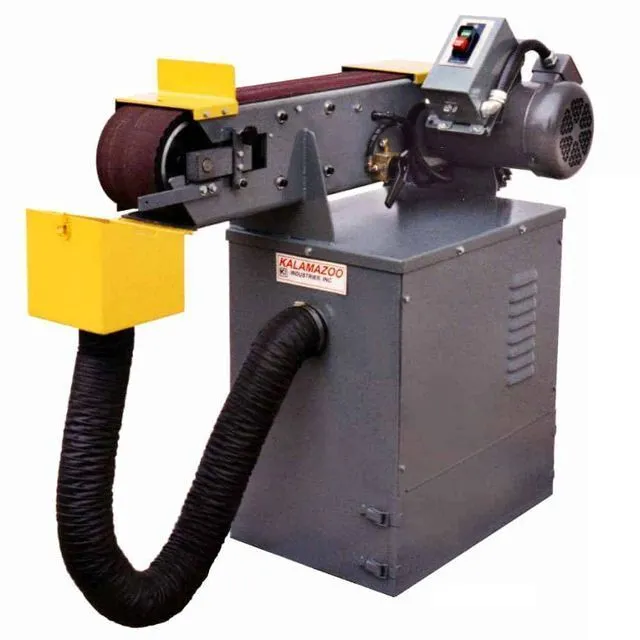

*Model KS690HV shown
**TEFC Motor

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
