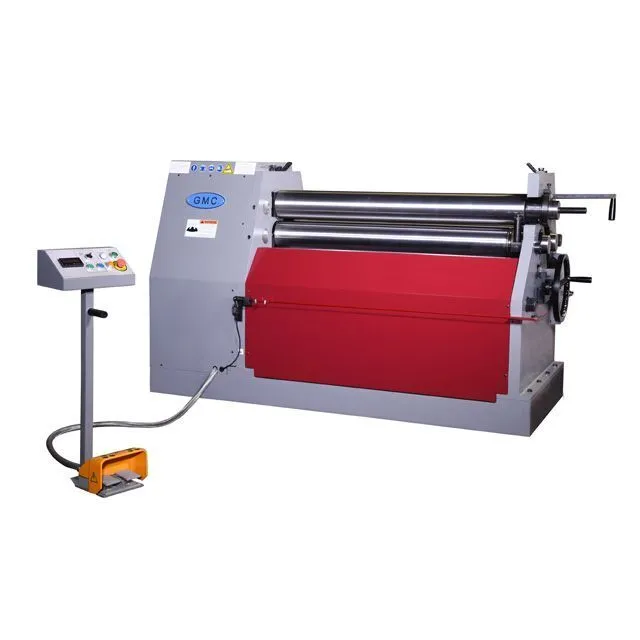

NEW GMC MACHINE TOOLS HBR-0625

Florida, United States
Asking Price
USD $36,850.00
1 available
3,834Listings|9Followers
Overview
Plate Bending Rolls including Pinch

GMC HBR-0625 Initial Pinch Hydraulic Plate Bending Roll has a mild steel roll capacity of 6 feet x 1/4 inches. Power source is 208V/220V. All three rollers are driven. Standard cone attachment installed. Heavy Duty all steel welded machine construction.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
72"
1.8 m
Max Thickness (gauge)
22 gauge
22 gauge
Pre-Bending Thickness
0.18"
4.572 mm
Capacity - Mild Steel
0.25"
6.35 mm
Capacity - Stainless Steel
0.1875"
4.7625 mm
Capacity - Soft Aluminum
0.375"
9.525 mm
# Rolls
3
3
Roll Diameter
7.5"
190.5 mm
Min. Roll Diameter
8.5"
215.9 mm
Roll Speed
5 RPM
5 RPM
Rolls Opening
0.75"
19.05 mm
Oil Tank Capacity
12 gal
45.4 L
Power
5.5 hp
4.1 kW
Voltage
220V or 440V (specify)
220V or 440V (specify)
Phase
3-phase
3-phase
Amperage
20A (220V) or 10A (440V)
20A (220V) or 10A (440V)
Dimensions
118 x 38 x 58 in.
118 x 38 x 58 in.
Weight
6,150 lbs.
6,150 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
