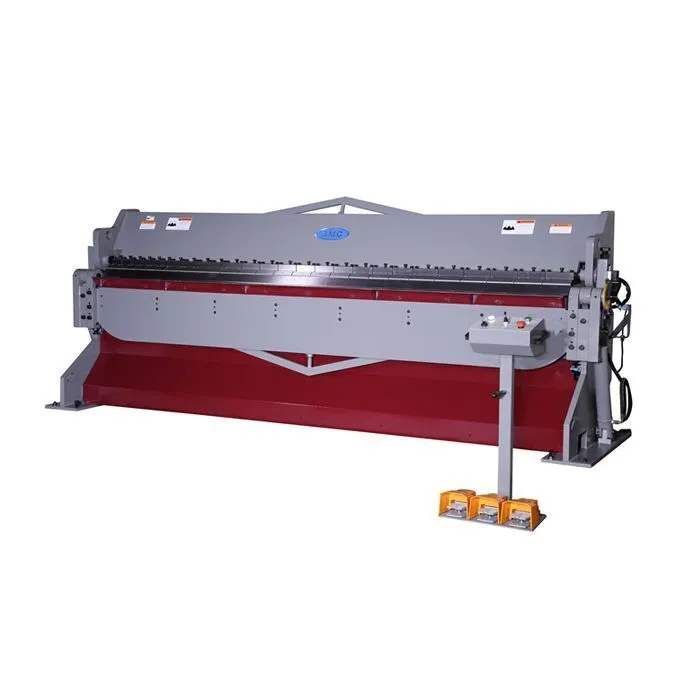

NEW GMC MACHINE TOOLS HBB-0610
Overview
Description
GMC HBB-0610 Hydraulic Box & Pan Brake has a 6 foot max bending length and 10 gauge mild steel capacity. This machine is made in Taiwan.26 inch Manual Rear-operated backgauge. Heavy welded all steel construction for maximum rigidity.
Specifications
| Capacity (ga) Mild Steel | 10 gauge | 10 gauge |
|---|---|---|
| Capacity (ga) Stainless | 12 gauge | 12 gauge |
| Capacity (in.) Aluminum | 0.25" | 6.35 mm |
| Bending Length (ft) | 6' | 1,828.8 mm |
| Hemming Max Thickness | 24 gauge | 24 gauge |
| Bending Angle/Degree | 135 degrees | 135 degrees |
| Max. Box Depth | 6.02" | 152.91 mm |
| Beam Opening | 3" | 76.2 mm |
| Manual Back Gauge | 26" | 660.4 mm |
| Oil Tank | 12 gal | 45.4 L |
| Hydraulic Oil | Shell #68 or equivalent | Shell #68 or equivalent |
| Main Motor | 5 HP | 5 HP |
| Power Requirement | 3 Phase | 3 Phase |
| Prewired Voltage | 220VAC 15A | 220VAC 15A |
| Optional Voltage | 440VAC 10A | 440VAC 10A |
| Machine Weight | 5,000 lb | 2,268 kg |
| Shipping Weight | 5,050 lb | 2,290.6 kg |
| Overall Dimensions | 91 x 46 x 67 in. | 91 x 46 x 67 in. |
| Shipping Dimensions | 105 x 40 x 66 in. | 105 x 40 x 66 in. |
| Dimensions | 91 x 46 x 67 in. | 91 x 46 x 67 in. |
| Weight | 5050 lbs. | 5050 lbs. |
Mild Steel (hot roll) 60k PSI
Stainless Steel 85k PSI
Soft Aluminum 28K PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
Optional Items:
One-piece straight finger instead of assorted fingers , extra - call for pricing
Safety fence for enclosure of the front side of the machine - call for pricing
Safety light curtain - call for pricing
3" replacement finger - call for pricing
4" replacement finger - call for pricing
5" replacement finger - call for pricing
6" replacement finger - call for pricing
