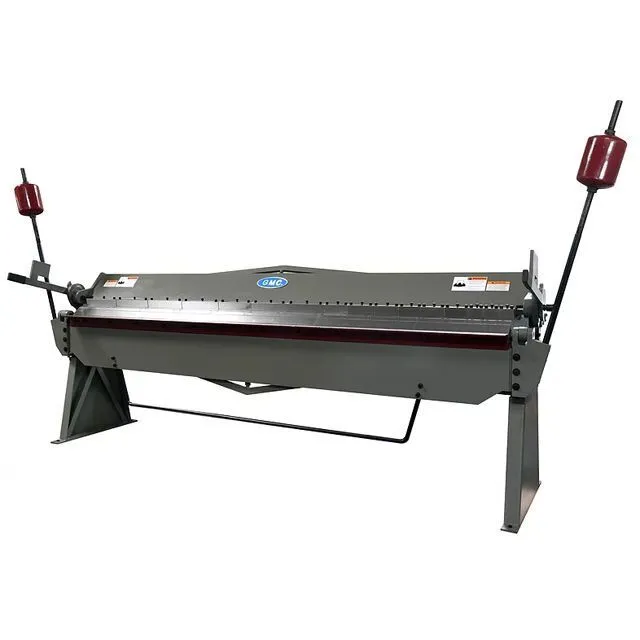

GMC BB-612-6HD Manual Box & Pan Brake has a 6 foot bending length capacity and 12 gauge bending capacity in mild steel.Hem light gauge material 26 Ga. or thinner.All steel heavy body construction with extra heavy tie rod for minimum deflection.
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
| Capacity (ga) Stainless Steel | 16 gauge | 16 gauge |
| Max. Hemming Thickness for Mild Steel | 26 gauge | 26 gauge |
| Bending Length (inches) | 6' | 1,828.8 mm |
| Max Box Depth | 6" | 152.4 mm |
| Bending Angle | 0-135° | 0-135° |
| Beam Adjustment, Front and Back | 1" | 25.4 mm |
| Manual Clamping | Standard | Standard |
| Beam Opening | 1.5625" | 39.688 mm |
| Minimum Reverse Bend | 0.5" | 12.7 mm |
| Machining Length | 1,230" | 31,242 mm |
| Machine Width | 32" | 812.8 mm |
| Machine Height | 77" | 1,955.8 mm |
| Shipping Dimensions LxWxH | 100 x 30 x 40 in. | 100 x 30 x 40 in. |
| Net Weight | 2,250 lb | 1,020.6 kg |
| Shipping Weight | 2,350 lb | 1,065.9 kg |
| Dimensions | 100 x 30 x 40 in. | 100 x 30 x 40 in. |
| Weight | 2350 lbs. | 2350 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
2" replacement finger - $115.00
3" replacement finger - $115.00
4"replacement finger - $135.00
5" or 6" replacement finger - $175.00
11" replacement finger - $175.00
25" replacement finger - $275.00
