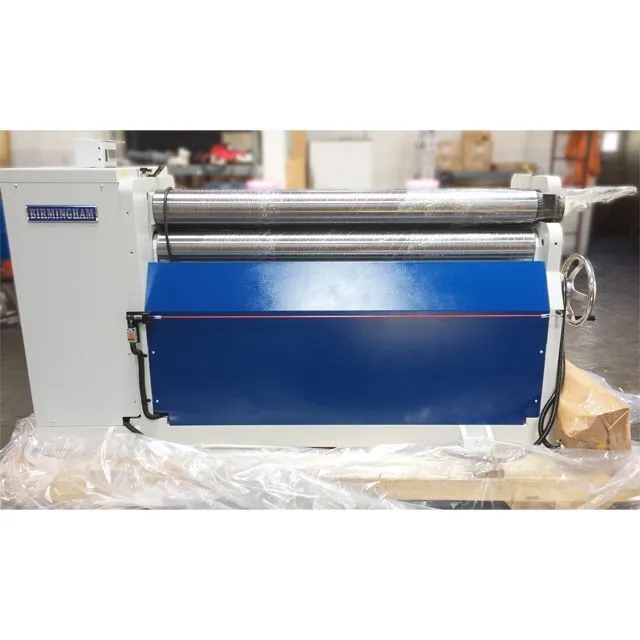

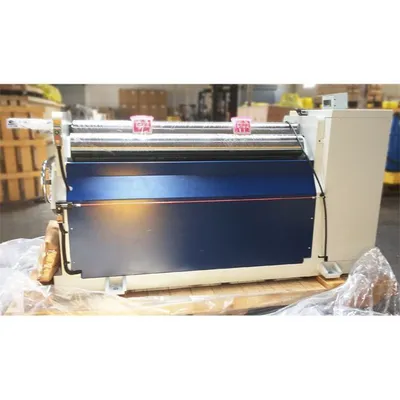

NEW BIRMINGHAM R-0545H

Florida, United States
3,831Listings|9Followers
Overview
Plate Bending Rolls including Pinch

BIRMINGHAM R-0545H 5ft x 7 ga. hydraulic plate roll, perfect for precision bending. Features include initial pinch, 60" roll length, 7-ga capacity, 3 HP, and 3-phase power.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
60"
1.5 m
Capacity - Mild Steel
7 gauge
7 gauge
Capacity - Mild Steel
0.1875"
4.7625 mm
# Rolls
3
3
Roll Diameter
5.875"
149.22 mm
Pinch Adjustment
Standard
Standard
Power
3 hp
2.2 kW
Voltage
220V/440V
220V/440V
Phase
3-phase
3-phase
Net Weight
5,400 lb
2,449.4 kg
Shipping Dimensions (L / W / H)
94" x 32" x 51"
94" x 32" x 51"

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

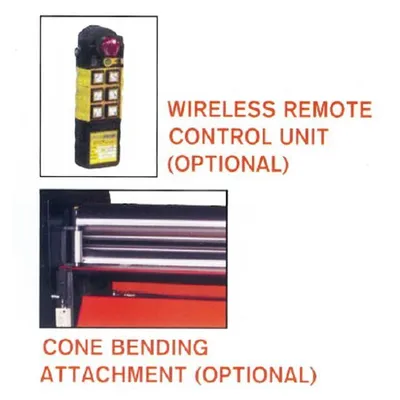

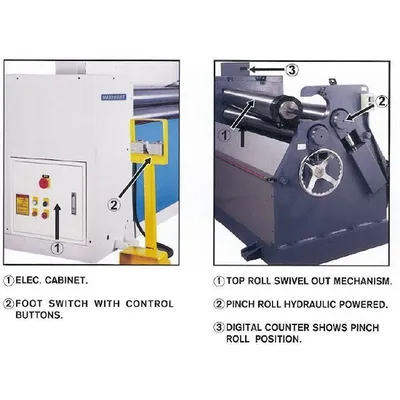

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
