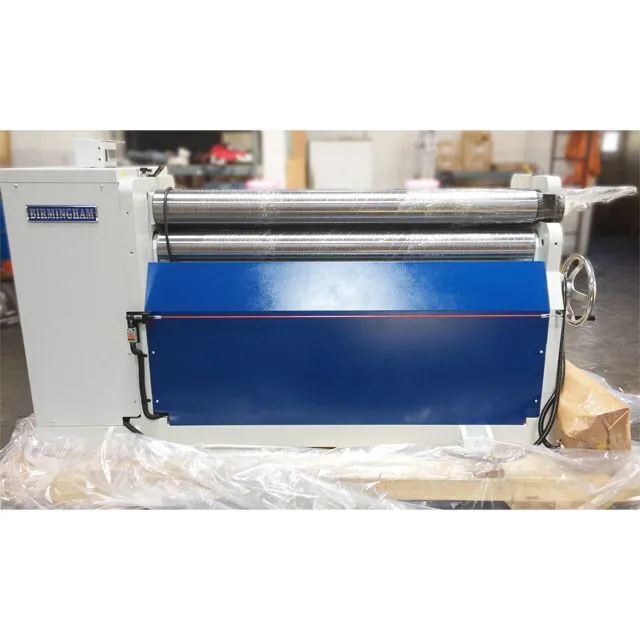

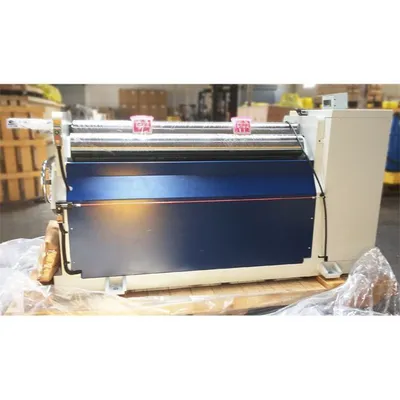

New BIRMINGHAM R-0535H Hydraulic Plate Bending Roll offers a 60" roll length and 10-gauge capacity. Ideal for precise metalwork with initial pinch and robust 3-roll design. Features 2 hp power, adjustable pinch, and a sturdy 4,500 lb build. 220V/440V, 3-phase.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 60" | 1.5 m |
| Max Thickness | 0.1345" | 3.4163 mm |
| Capacity - Mild Steel | 10 gauge | 10 gauge |
| # Rolls | 3 | 3 |
| Roll Diameter | 4.75" | 120.65 mm |
| Pinch Adjustment | Standard | Standard |
| Power | 2 hp | 1.5 kW |
| Voltage | 220V/440V | 220V/440V |
| Phase | 3-phase | 3-phase |
| Net Weight | 4,500 lb | 2,041.2 kg |
| Shipping Dimensions (L / W / H) | 93" x 30" x 49" | 93" x 30" x 49" |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
