NEW BIRMINGHAM R-0570H

Florida, United States
3,831Listings|9Followers
Overview
Plate Bending Rolls including Pinch

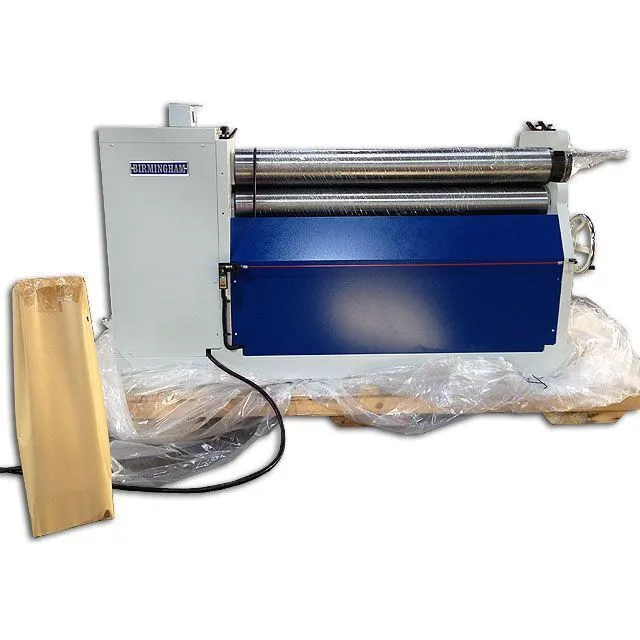

Discover the BIRMINGHAM R-0570H, a new 5ft x 9/32 in. hydraulic plate roll featuring an initial pinch design. With 3 rolls, 7" diameter, 5 hp power, and 220V/440V capability, this machine offers precision and efficiency.

Specs
(Init/Dbl Pinch or Pyramid)
INIT PINCH
INIT PINCH
Length of Rolls (inch)
60"
1.5 m
Capacity - Mild Steel
0.281"
7.1374 mm
# Rolls
3
3
Roll Diameter
7"
177.8 mm
Roll Speed
2.4 m/min.
7.8 ft/min.
Hydraulic Powered Pinch Adjustment
Standard
Standard
Power
5 hp
3.7 kW
Voltage
220V/440V
220V/440V
Phase
3-phase
3-phase
Shipping Dimensions (L / W / H)
108" x 47" x 59"
108" x 47" x 59"
Shipping Weight
5,650 lb
2,562.8 kg

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
