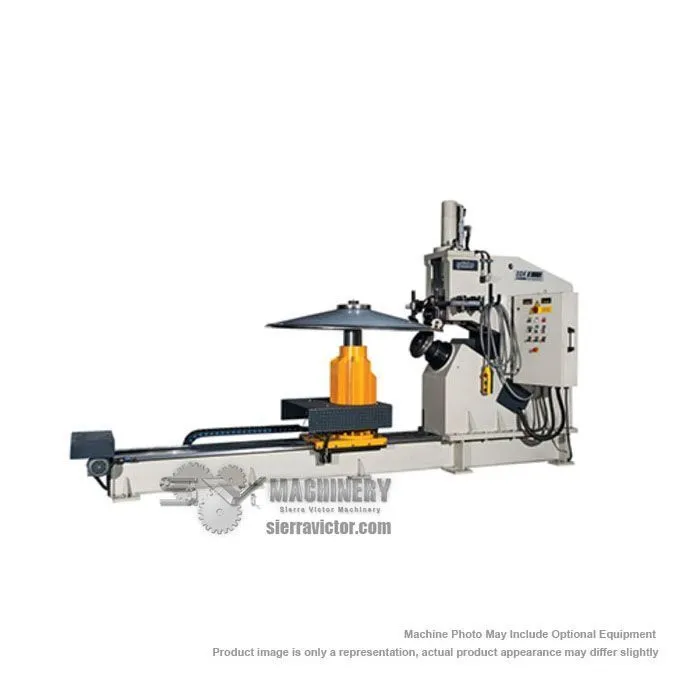

One Set of Flanging Rolls and One Set of Cutting Blades Included with the Cole-Tube SDK-8 Combo Shear Flanger. Two-Rotation Speed Part Carrier 0,35-0,68 M/Sec.
| Maximum Capacity - Mild Steel | 5/16 in. | 5/16 in. |
| Maximum Capacity - Stainless Steel | 0.1875 in | |
| Max. Plate Diameter | 177 in. | 177 in. |
| Min. Plate Diameter | 2-3/8 in. | 2-3/8 in. |
| Max. Flanging Radius | 3.94 in. | 3.94 in. |
| Max. Flanging Length | 5.91" @ Radius of 100, 7.48" @ Radius of 25 | 5.91" @ Radius of 100, 7.48" @ Radius of 25 |
| Motor | 14.5 HP | 14.5 HP |
| Dimensions | 182 x 50 x 107 in. | 182 x 50 x 107 in. |
| Weight | 9680 lbs. | 9680 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
Both Flat and Crowned Bottoms Flanging
Hydraulically Adjustable Bottom Height for Both Flat and Crowned Dish Flanging
Both Cutting and Flanging Operation on the Same Head
