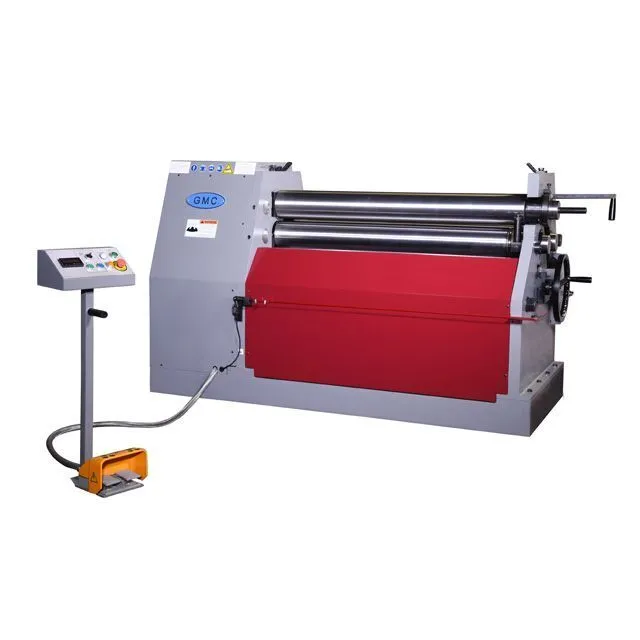

GMC HBR-0525 Initial Pinch Hydraulic Plate Bending Roll has a mild steel roll capacity of 5 feet x 1/4 inches. Power source is 208V/220V. This machine is made in Taiwan. Standard cone attachment installed. Heavy Duty all steel welded machine construction.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 60" | 1.5 m |
| Pre-Bending Thickness | 0.18" | 4.572 mm |
| Capacity - Mild Steel | 0.25" | 6.35 mm |
| Capacity - Stainless Steel | 0.1875" | 4.7625 mm |
| Capacity - Soft Aluminum | 0.375" | 9.525 mm |
| Max Thickness (gauge) | 22 gauge | 22 gauge |
| # Rolls | 3 | 3 |
| Roll Diameter | 7" | 177.8 mm |
| Min. Roll Diameter | 9" | 228.6 mm |
| Roll Speed | 5 RPM | 5 RPM |
| Rolls Opening | 1.5" | 38.1 mm |
| Oil Tank Capacity | 12 gal | 45.4 L |
| Power | 5.5 hp | 4.1 kW |
| Voltage | 220V or 440V (specify) | 220V or 440V (specify) |
| Phase | 3-phase | 3-phase |
| Amperage | 20A (220V) or 10A (440V) | 20A (220V) or 10A (440V) |
| Dimensions | 102 x 38 x 58 in. | 102 x 38 x 58 in. |
| Weight | 5,150 lbs. | 5,150 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
