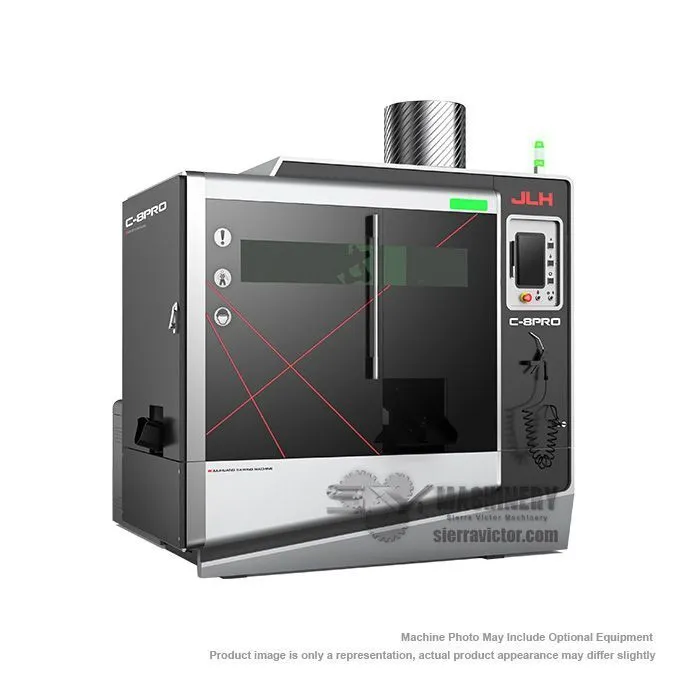

JLH 30 inch C-8PRO is a Fully Automatic Circular Bandsaw. Controller provides latest in PLC based control technology. 45 degree Slant-bed design.
| Max Blade Diameter | 750 mm | 29.528" |
| Maximum Cutting Capacity - Round | 70-200mm (2.755 – 7.784 in.) | 70-200mm (2.755 – 7.784 in.) |
| Maximum Cutting Capacity - Square | 70-155mm (2.755 – 6.102 in.) | 70-155mm (2.755 – 6.102 in.) |
| Motor | 40.8 HP | 40.8 HP |
| Hydraulic Motor | 7.5 HP | 7.5 HP |
| Coolant Motor | 7.5 HP | 7.5 HP |
| Power | 220v, 3-phase, 60Hz | 220v, 3-phase, 60Hz |
| Blade Speed | 10~70 RPM | 10~70 RPM |
| Single Feed Stroke | 800 mm | 31.496" |
| Hydraulic Oil Tank Capacity | 39.6 gal | 149.9 L |
| Cutting Liquid Oil Tank Capacity | 0.5 gal | 1.9 L |
| Dimensions | 110 x 177 x 118 in. | 110 x 177 x 118 in. |
| Weight | 26,455 lbs. without loader | 26,455 lbs. without loader |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
