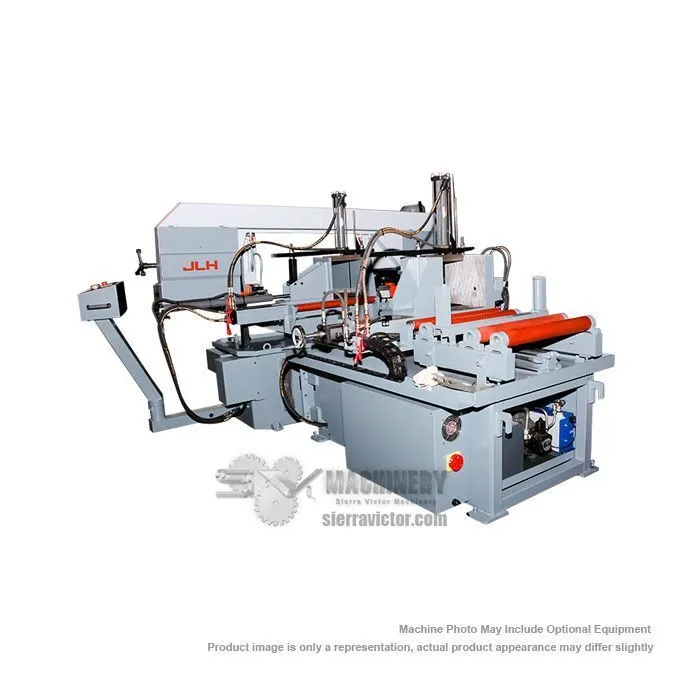

JLH 16 inch S-16MNC is an Automatic Mitering Band Saw.JLH Saws Control provides latest in PLC based control technology.A large coolant tank ensures excellent working conditions for the saw blade and work piece.
| Capacity Round | 16.5 in. (0°) / 15.7 in. (45°) | 16.5 in. (0°) / 15.7 in. (45°) |
| Capacity Square | 24.0 x 16.5 in. (0°) / 15.7 x 15.7 in. (45°) | 24.0 x 16.5 in. (0°) / 15.7 x 15.7 in. (45°) |
| Blade Motor | 4 HP | 4 HP |
| Blade Speed | 65.6-295.3 fpm | 65.6-295.3 fpm |
| Saw Blade Size | 204.7 x 1.3 x 0.042 in. | 204.7 x 1.3 x 0.042 in. |
| Saw Blade Tension | Manually controlled | Manually controlled |
| Power | 220v, 3-Phase 60Hz | 220v, 3-Phase 60Hz |
| Coolant Motor | 0.18 HP | 0.18 HP |
| Hydraulic Motor | 1.0 HP | 1.0 HP |
| Dimensions | 126 x 130 x 61 in. (LxWxH) | 126 x 130 x 61 in. (LxWxH) |
| Weight | 2403 | 2403 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
Optional items - Call for price:
* Variable Vise Pressure Control System
* 6’6” (2M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* 9’10” (3M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* Powered Roller Tables
* Transformer for 480V, 3 Phase
