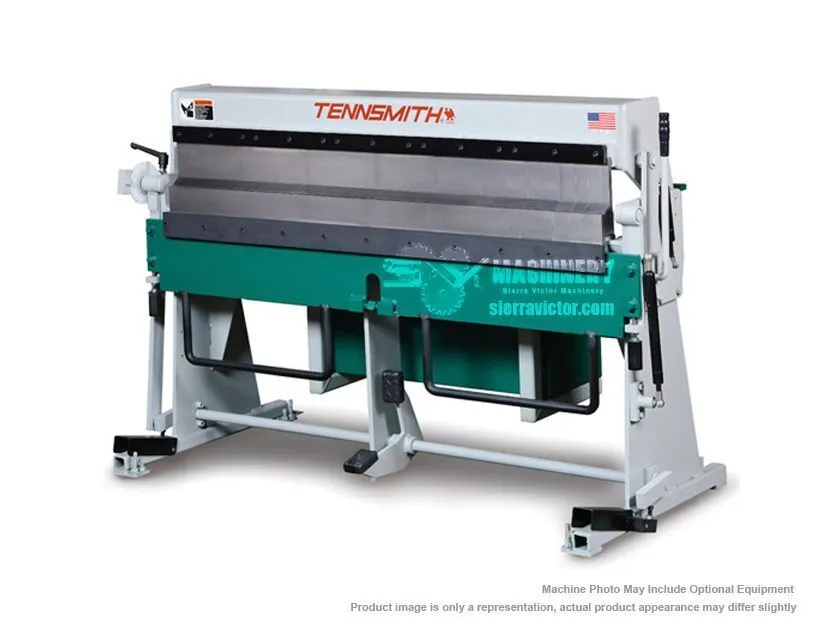

NEW TENNSMITH EBT6016
USD $11,275.00
Overview
Description
TENNSMITH EBT6016 Universal Hand Brake has a 60 inch bending capacity and a 16 gauge mild steel capacity.TENNSMITH'S EBT Series is a versatile machine that allows for the removal and repositioning of both the upper and lower segments for forming complex parts. The EBT incorporates gas spring cylinders in lieu of traditional counterweights to assist in the bending process and the raising and lowering of the upper beam. The brake also features goat's foot style upper beam tooling.
Specifications
| Capacity (ga) Mild Steel | 16 gauge | 16 gauge |
|---|---|---|
| Bending Length | 60.25" | 1,530.3 mm |
| Beam Adjustment | 1" | 25.4 mm |
| Min Reverse Bend | 0.625" | 15.875 mm |
| Maximum Lift of Beam | 4 in. | 4 in. |
| Depth of Box or Pan | 4.125 in. | 4.125 in. |
| Segmented tooling width | 20, 12, 8, 6, 4, 1.5, 1 | 20, 12, 8, 6, 4, 1.5, 1 |
| Maximum Traverse Bend (through tooling centers) | 2-1/4 in. | 2-1/4 in. |
| Machines Dimensions L/W/H | 72 x 45-1/2 x 31-1/2 in. | 72 x 45-1/2 x 31-1/2 in. |
| Shipping Weight | 1,150 lb | 521.6 kg |
| Dimensions | 72 x 45-1/2 x 31-1/2 in. | 72 x 45-1/2 x 31-1/2 in. |
| Weight | 1150 lbs. | 1150 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
