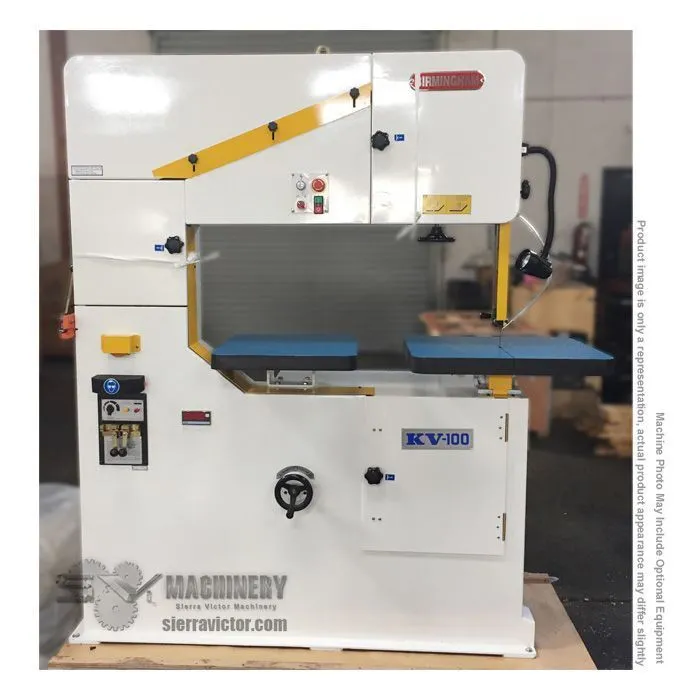

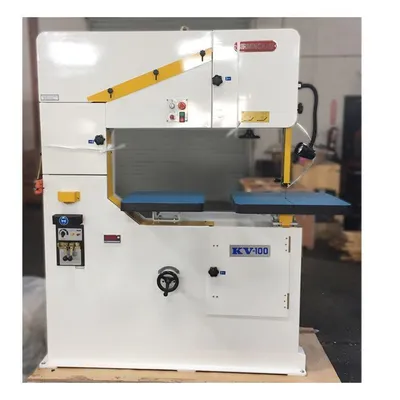

The BIRMINGHAM KV-100 Vertical Metal Cutting Band Saw has a Saw blade butt welder with integrated annealing unit and a brush for cleaning lower drive wheel. Also has a low voltage working lamp.
| Throat Depth | 39.75" | 1,009.6 mm |
| Max. Work Height | 11.5" | 292.1 mm |
| Blade Length | 178-5/8 in. | 178-5/8 in. |
| Blade Width | 3-16mm | 3-16mm |
| Blade Speeds - Low Range | 20-85m/min (65-280 fpm) | 20-85m/min (65-280 fpm) |
| Blade Speeds - High Range | 120-500m/min (400-1640 fpm) | 120-500m/min (400-1640 fpm) |
| Table Size | 23-1/2 x 19-1/2 in. / 17-3/4 x 19-1/2 in. | 23-1/2 x 19-1/2 in. / 17-3/4 x 19-1/2 in. |
| Table inclination (4 ways) | 15° | 15° |
| Butt Welder Capacity | 1/8 - 5/8 in. (2.4 KVA 3-16mm) | 1/8 - 5/8 in. (2.4 KVA 3-16mm) |
| Motor | 2 HP | 2 HP |
| Power | 220v, 3-phase | 220v, 3-phase |
| Net Weight | 1,168 lb | 529.8 kg |
| Gross Weight | 1,367 lb | 620.1 kg |
| Dimensions | 69-7/16 x 29-13/16 x 84-5/16 in. | 69-7/16 x 29-13/16 x 84-5/16 in. |
Specifications and design are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* Rip fence for straight, repeated cuttings easily removable for varied size
* Miter protractor for angular cutting
* Groove table
