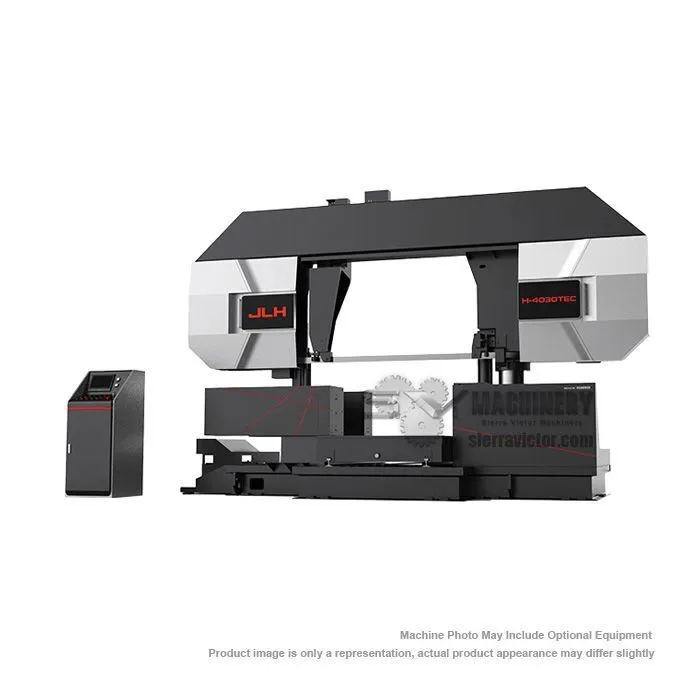

JLH Saws H-4030TEC is a 30 inch Semi-Automatic Bandsaw.Drive motor is inverter controlled.JLH Saws Control provides latest in PLC based control technology.
| Cutting Capacity Round | 31.5 in. | 31.5 in. |
| Cutting Capacity Square | 39.4 x 31.5 in. | 39.4 x 31.5 in. |
| Blade Size | 380.0 x 2.6 x 0.06 in. | 380.0 x 2.6 x 0.06 in. |
| Blade Speed | 65.6 - 262.5 fpm | 65.6 - 262.5 fpm |
| Blade Motor | 20.3 HP | 20.3 HP |
| Voltage - Imax (A) 480V/60Hz | 27 | 27 |
| Voltage - Imax (A) 220V/60Hz | 58 | 58 |
| Hydraulic Motor | 5 HP | 5 HP |
| Hydraulic Oil Tank Capacity | 26.4 gal | 99.9 L |
| Coolant Motor | 0.24 HP | 0.24 HP |
| Cutting Oil Tank Capacity | 39.6 gal | 149.9 L |
| Dimensions | 197 x 87 x 118 in. | 197 x 87 x 118 in. |
| Weight | ≈27,558 lbs. | ≈27,558 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
