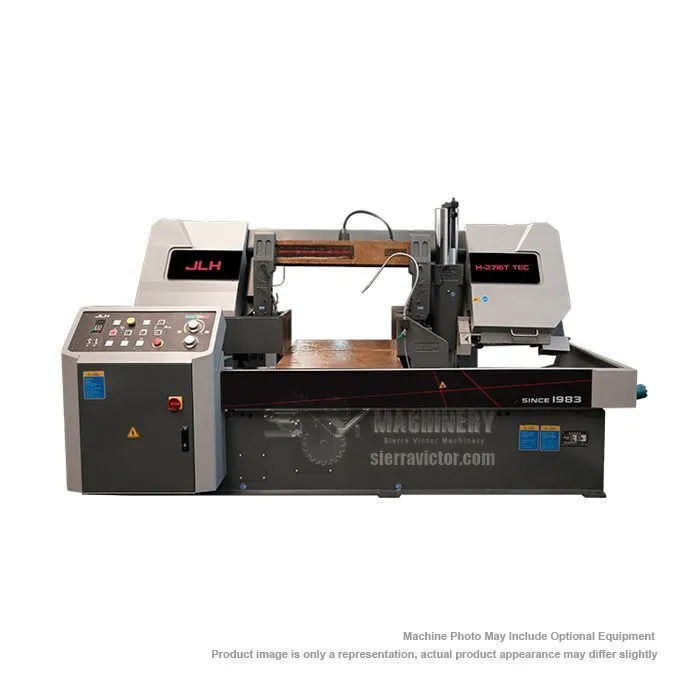

NEW JLH H-2716TEC

Florida, United States
3,886Listings|10Followers
Overview
Horizontal Band Saws

JLH Saws H-2716TEC is a 16 inch Semi-Automatic Bandsaw.Drive motor is inverter controlled.JLH Saws Control provides latest in PLC based control technology.

Specs
Cutting Capacity Round
16.9 in.
16.9 in.
Cutting Capacity Square
27.6 x 16.9 in.
27.6 x 16.9 in.
Blade Size
236.2 x 1.6 x 0.05 in.
236.2 x 1.6 x 0.05 in.
Blade Speed
49.2 - 262.5 fpm
49.2 - 262.5 fpm
Blade Motor
10 HP
10 HP
Voltage - Imax (A) 480V/60Hz
13
13
Voltage - Imax (A) 220V/60Hz
28
28
Hydraulic Motor
2.95 HP
2.95 HP
Hydraulic Oil Tank Capacity
10.9 gal
41.3 L
Coolant Motor
0.54 HP
0.54 HP
Cutting Oil Tank Capacity
36.9 gal
139.7 L
Bed/Table Height
28.76"
730.5 mm
Dimensions
135.8 x 118.1 x 70.9 in.
135.8 x 118.1 x 70.9 in.
Weight
≈8,157 lbs.
≈8,157 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
