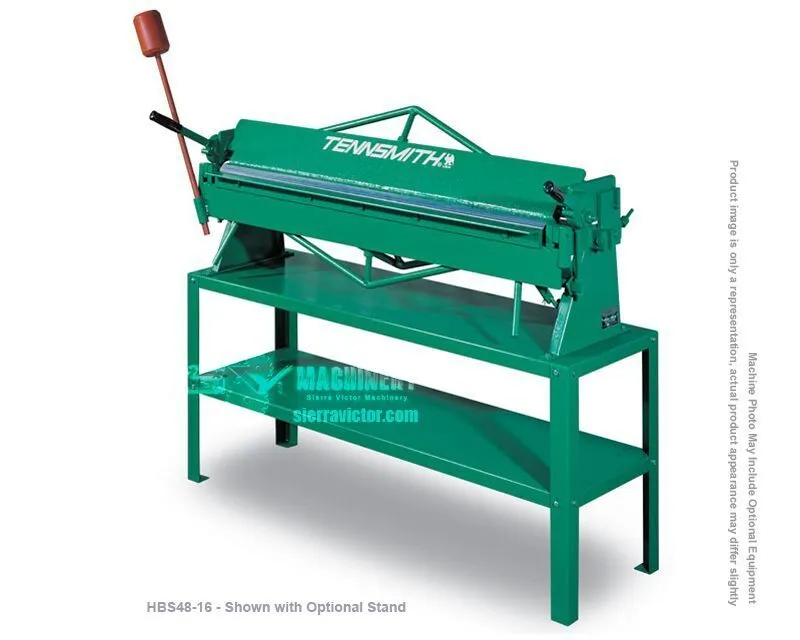

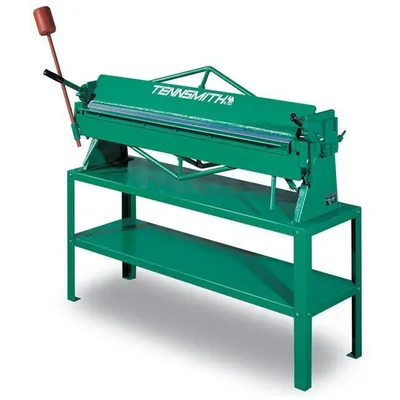

NEW TENNSMITH HBS48-16

USD $1,675.00
1 available
Overview
Manufacturer:
TENNSMITH
Model:
HBS48-16
Stock #:
85020.
Description

TENNSMITH HBS48-16 Bench-Mounted Straight Hand Brake has a bending length of 48-1/4 inches and 16 gauge mild steel capacity.TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight.

Specifications
Capacity (ga) Mild Steel16 gauge16 gauge
Bending Length48.25"1,225.5 mm
Beam Adjustment0.625"15.875 mm
Min Reverse Bend0.25"6.35 mm
Maximum Lift of Beam1.751.75
Minimum Flange in Capacity Material1"25.4 mm
Shipping Weight460 lb208.7 kg
Weight460 lbs.460 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited

Equipped With

Optional Items:
85060: Floor Stand for 4 Foot Bench Brakes ........ $350.00
