TENNSMITH U48-22 Bench-Mounted Box and Pan Hand Brake has a bending length of 48-1/4 inches and 22 gauge mild steel capacity. TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. Model U48-22 is a lighter capacity version of the four-foot bench brake, which offer economical alternatives in working 22-gauge and lighter materials. Also, their lighter weights make these models better suited for transporting to remote job sites.
| Capacity (ga) Mild Steel | 22 gauge | 22 gauge |
| Bending Length (inches) | 48.25" | 1,225.5 mm |
| Max Box Depth | 3" | 76.2 mm |
| Beam Adjustment, Front and Back | 0.25" | 6.35 mm |
| Finger Widths | 2, 3, 4 in. | 2, 3, 4 in. |
| Minimum Flange in Capacity Material | 0.375" | 9.525 mm |
| Maximum Lift of Beam | 0.875" | 22.225 mm |
| Minimum Reverse Bend | 0.3125" | 7.9375 mm |
| Shipping Weight | 280 lb | 127 kg |
| Weight | 280 lbs. | 280 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

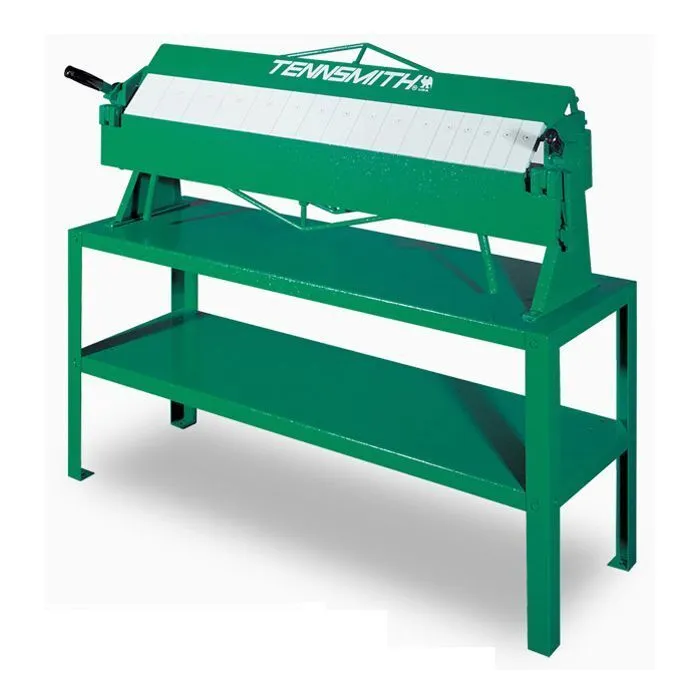

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
85060: Floor Stand for 4 Foot Bench Brakes ....... $350.00
