NEW TENNSMITH S48-22

Florida, United States
Asking Price
USD $1,050.00
1 available
3,917Listings|10Followers
Overview
Box & Pan Brakes including Finger

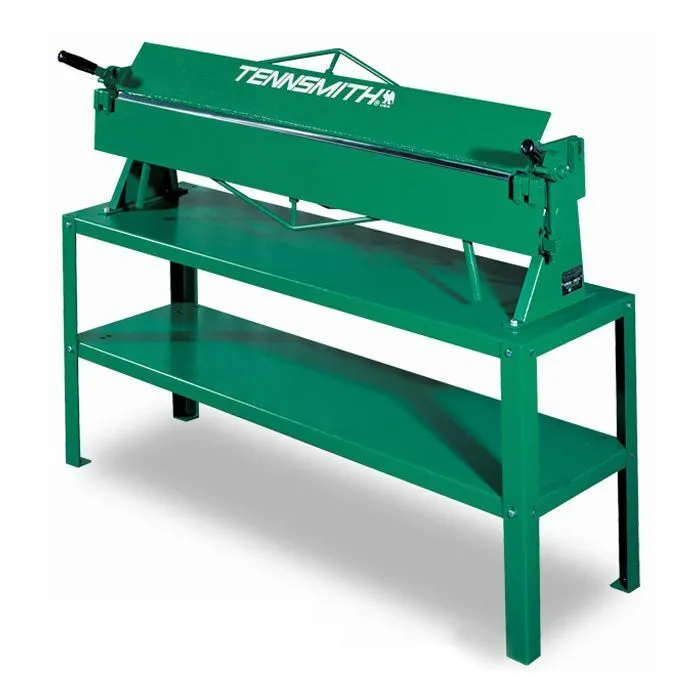

TENNSMITH S48-22 is a Bench-Mounted Straight Hand Brake with bending length of 48-1/4 inch and mild steel bending capacity of 22 gauge.Model S48-22 is a lighter capacity version of the four-foot bench brake, which offer economical alternatives in working 22-gauge and lighter materials. Also, their lighter weights make these models better suited for transporting to remote job sites.

Specs
Capacity (ga) Mild Steel
22 gauge
22 gauge
Bending Length
4'
1.2 m
Bending Length
48.25"
1,225.5 mm
Beam Adjustment
0.25"
6.35 mm
Min Reverse Bend
0.3125"
7.9375 mm
Maximum Lift of Beam
0.875 in.
0.875 in.
Minimum Flange in Capacity Material
0.375"
9.525 mm
Shipping Weight
220 lb
99.8 kg
Weight
220 lbs.
220 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS:
85060 - Bolt-together floor stand: $385
