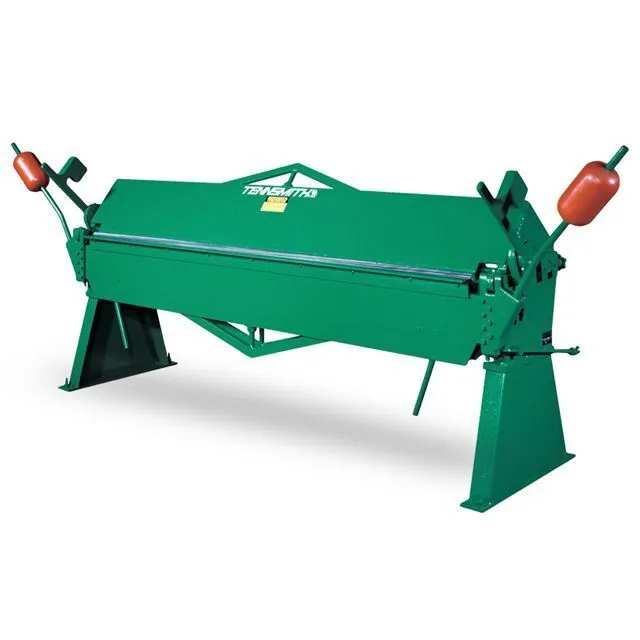

TENNSMITH HB48-12 Heavy Duty Hand Brake has a bending length of 49 inches (4 ft) and mild steel capacity of 12 gauge. Designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
| Bending Length | 49" | 1,244.6 mm |
| Beam Adjustment | 0.5" | 12.7 mm |
| Min Reverse Bend | 0.25" | 6.35 mm |
| Maximum Lift of Beam | 1.875 | 1.875 |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Machines Dimensions L/W/H | 72 x 36 x 53 in. Counterweights in Place, LxWxH | 72 x 36 x 53 in. Counterweights in Place, LxWxH |
| Shipping Weight | 1,100 lb | 499 kg |
| Dimensions | 72 x 36 x 53 in. Counterweights in Place, LxWxH | 72 x 36 x 53 in. Counterweights in Place, LxWxH |
| Weight | 1100 | 1100 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
