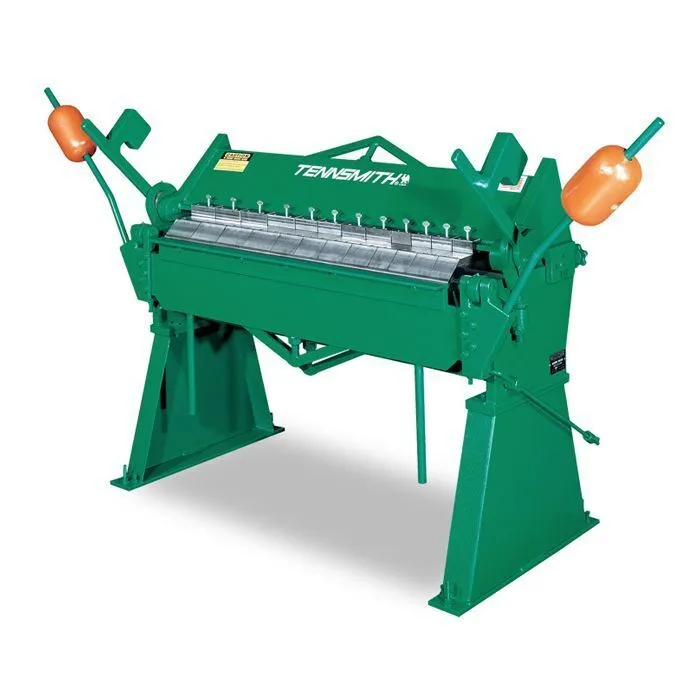

NEW TENNSMITH F6-48-12
Overview
Description
TENNSMITH F6-48-12 Box and Pan Hand Brake has a bending length of 48 inches (4 ft) and mild steel capacity of 12 gauge. Designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for quick setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Specifications
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
|---|---|---|
| Capacity (ga) Stainless Steel | 16 gauge | 16 gauge |
| Bending Length (inches) | 48" | 1,219.2 mm |
| Max Box Depth | 6" | 152.4 mm |
| Beam Adjustment, Front and Back | 0.5" | 12.7 mm |
| Finger Widths | 3, 4 and 5 in. | 3, 4 and 5 in. |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Maximum Lift of Beam | 1.5" | 38.1 mm |
| Minimum Reverse Bend | 0.25" | 6.35 mm |
| Machining Length | 72" | 1,828.8 mm |
| Machine Width | 49" | 1,244.6 mm |
| Machine Height | 56" | 1,422.4 mm |
| Shipping Weight | 1,725 lb | 782.4 kg |
| Dimensions | 72 x 49 x 56 in. (LxWxH) Counterweights in Place | 72 x 49 x 56 in. (LxWxH) Counterweights in Place |
| Weight | 1725 lbs. | 1725 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
Optional Items:
*85270: Extension Fingers (pair) for F6 Models: $475.00
Right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc.
*85275: Open End Fingers (pair) for F6 Models: $625.00
Provides triangular, square, tapered and rectangular tube forming abilities
*85280: F6 Radius Fingers (Please Specify Radii) - per inch: $56.00
