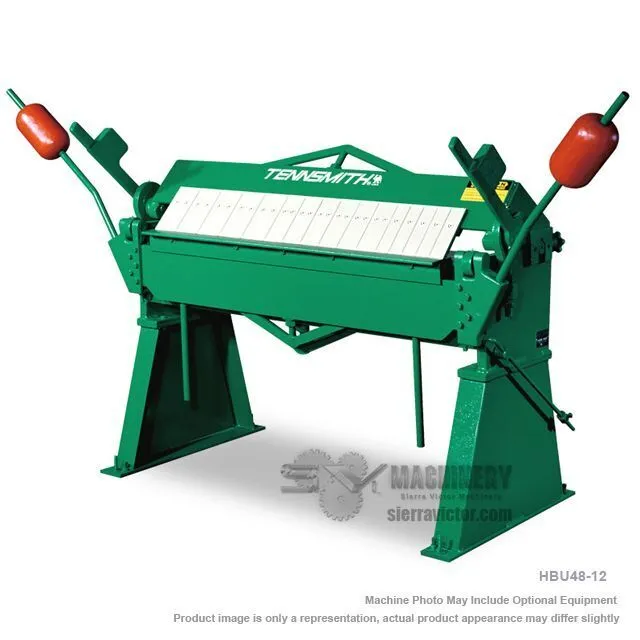

NEW TENNSMITH HBU48-12
USD $5,450.00
Overview
Description
TENNSMITH HBU48-12 Box and Pan Hand Brake has a bending length of 48-1/4 inches and 12 gauge mild steel capacity.TENNSMITH'S HBU Series box and pan hand brakes are an economical tool for a wide range of sheet metal bending and forming operations.Each hand brake is ideal for both box and pan and straight bending in hot and cold rolled plate, stainless steel, aluminum and heavy plastic.Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
Specifications
| Capacity (ga) Mild Steel | 12 gauge | 12 gauge |
|---|---|---|
| Capacity (ga) Stainless Steel | 16 gauge | 16 gauge |
| Bending Length (inches) | 48.25" | 1,225.5 mm |
| Max Box Depth | 4" | 101.6 mm |
| Beam Adjustment, Front and Back | 1" | 25.4 mm |
| Finger Widths | 2, 3 and 4 in. | 2, 3 and 4 in. |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Maximum Lift of Beam | 1.5" | 38.1 mm |
| Minimum Reverse Bend | 0.25" | 6.35 mm |
| Machining Length | 72" | 1,828.8 mm |
| Machine Width | 36" | 914.4 mm |
| Machine Height | 53" | 1,346.2 mm |
| Shipping Weight | 1,330 lb | 603.3 kg |
| Dimensions | 72 x 36 x 53 in. (LxWxH) Counterweights in Place | 72 x 36 x 53 in. (LxWxH) Counterweights in Place |
| Weight | 1330 lbs. | 1330 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Equipped With
Optional Items:
Radius Fingers HBU48-12, Per Inch ......... $36.00
