NEW TENNSMITH HBU48-16
Overview
Description
TENNSMITH HBU48-16 Bench-Mounted Box and Pan Hand Brake has a bending length of 48-1/4 inches and 16 gauge mild steel capacity.TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight.
Specifications
| Capacity (ga) Mild Steel | 16 gauge | 16 gauge |
|---|---|---|
| Bending Length (inches) | 48.25" | 1,225.5 mm |
| Overall Length | 48" | 1.2 m |
| Max Box Depth | 4" | 101.6 mm |
| Beam Adjustment, Front and Back | 0.625" | 15.875 mm |
| Finger Widths | 2, 3, 4 in. | 2, 3, 4 in. |
| Minimum Flange in Capacity Material | 1" | 25.4 mm |
| Maximum Lift of Beam | 1.25" | 31.75 mm |
| Minimum Reverse Bend | 0.25" | 6.35 mm |
| Shipping Weight | 495 lb | 224.5 kg |
| Weight | 495 lbs. | 495 lbs. |

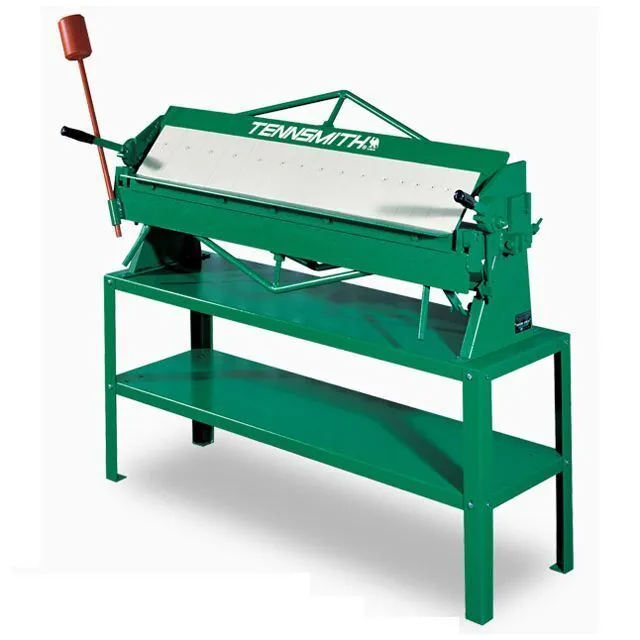

*Shown with Optional Stand
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
Optional Items:
Floor Stand for 4 Foot Bench Brakes ....... $350.00
