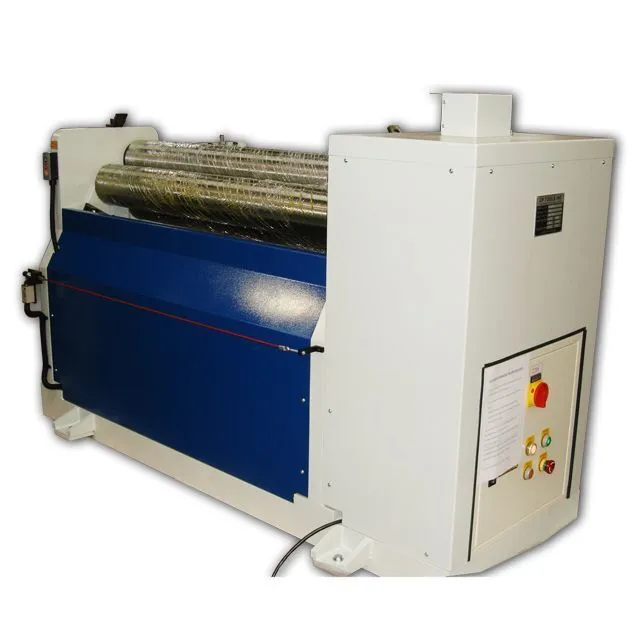

Discover the BIRMINGHAM R-0440H, a new 4ft x 8 ga. hydraulic plate roll featuring an initial pinch design. Equipped with three 4.75" rolls, a 2 hp motor, and a capacity for 8-gauge mild steel, this robust machine operates on 220V/440V, 3-phase power.
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Length of Rolls (inch) | 48" | 1.2 m |
| Max Thickness | 0.1644" | 4.1758 mm |
| Capacity - Mild Steel | 8 gauge | 8 gauge |
| # Rolls | 3 | 3 |
| Roll Diameter | 4.75" | 120.65 mm |
| Pinch Adjustment | Standard | Standard |
| Power | 2 hp | 1.5 kW |
| Voltage | 220V/440V | 220V/440V |
| Phase | 3-phase | 3-phase |
| Net Weight | 4,000 lb | 1,814.4 kg |
| Dimensions | 81" x 30" x 49" | 81" x 30" x 49" |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
