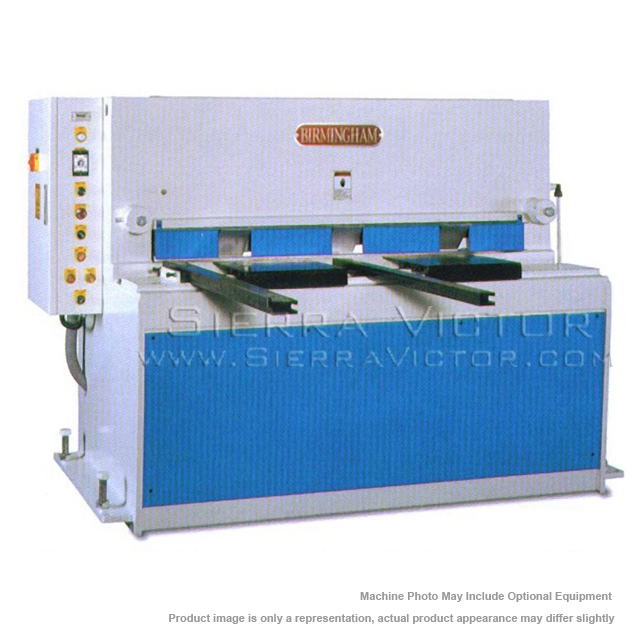

NEW BIRMINGHAM H-0445

Florida, United States
3,917Listings|10Followers
Overview
Power Squaring Shears (Gauge)

BIRMINGHAM H-0445, a new 4 ft x 7 ga. hydraulic shear. Ideal for precision cutting, this machine promises efficiency and durability in your metalworking operations.

Specs
Max Sheet Size (ft)
4'
1,219.2 mm
Length of Blade
4'
1.2 m
Shearing Capacity - Mild Steel
7 gauge
7 gauge
Shearing Capacity - Stainless Steel
11 gauge
11 gauge
Strokes Per Minute (S.P.M.)
40-55
40-55
Hold-Downs Number
8
8
Hold-Downs Pressure (Tons)
3.2 T
2,903 kg
Oil Tank Capacity
25 gal
94.6 L
Back Gauge
24"
609.6 mm
Front Support
40"
1,016 mm
Motor Power
10 hp
7.5 kW
Top Blade Rake Adjustment
Hydraulic Adjustment Rake Angle & Blade Clearance Adjust
Hydraulic Adjustment Rake Angle & Blade Clearance Adjust
Top Blade Rake Angle
1/2 - 2°
1/2 - 2°
Dimensions
91" x 48" x 63" (approx.)
91" x 48" x 63" (approx.)
Weight
4,800 lbs.
4,800 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
